Fuel Pressure Sensor Replacement - Fuel Feed Pipe

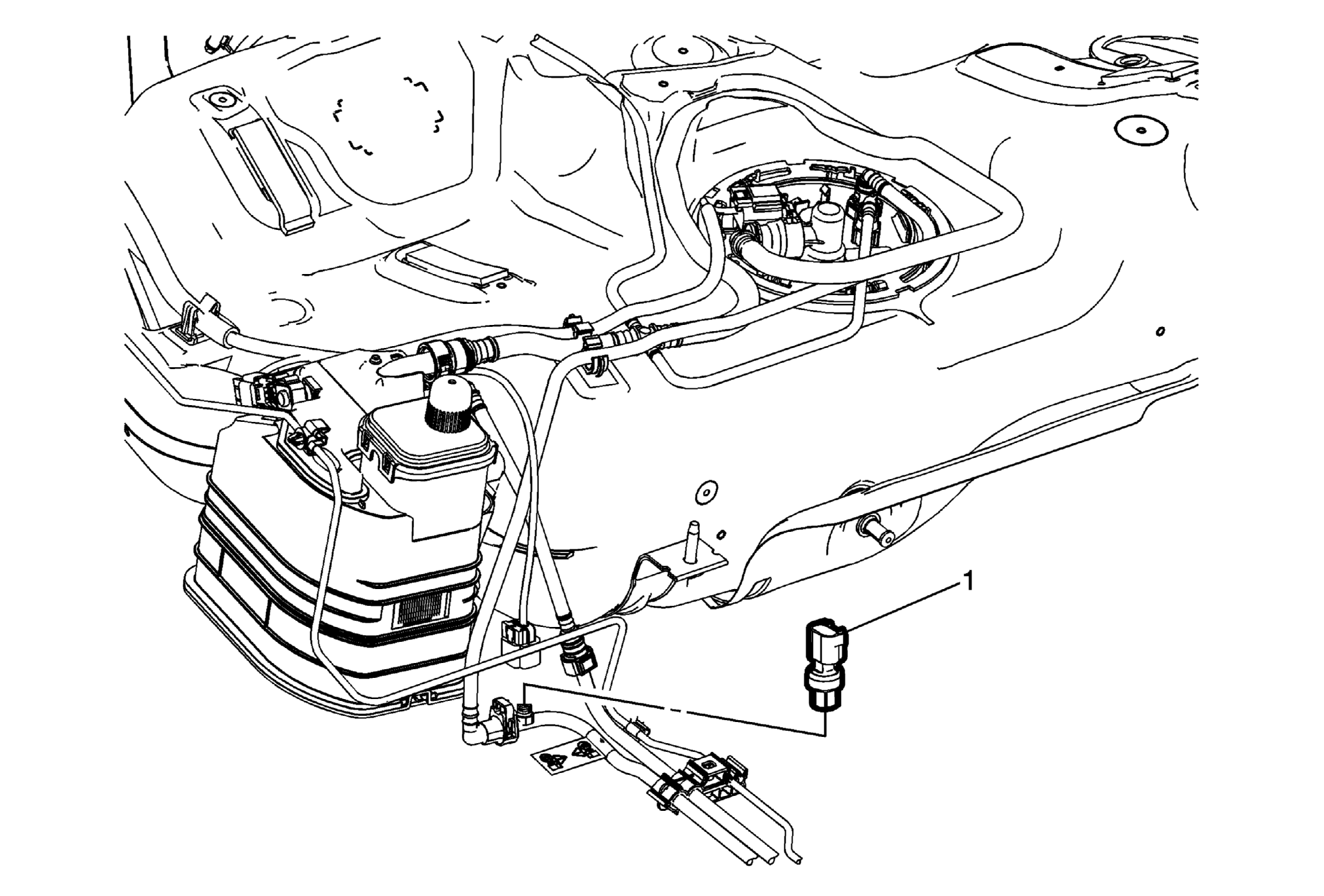

Fig 1: Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fuel Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Use a NEW O-ring whenever the sensor is removed. Tighten 9Y (80 lb in)

Callout

Component Name

Preliminary Procedures

Fuel Pressure Sensor

CAUTION:

Procedure

Tighten
9Y (80 lb in)
