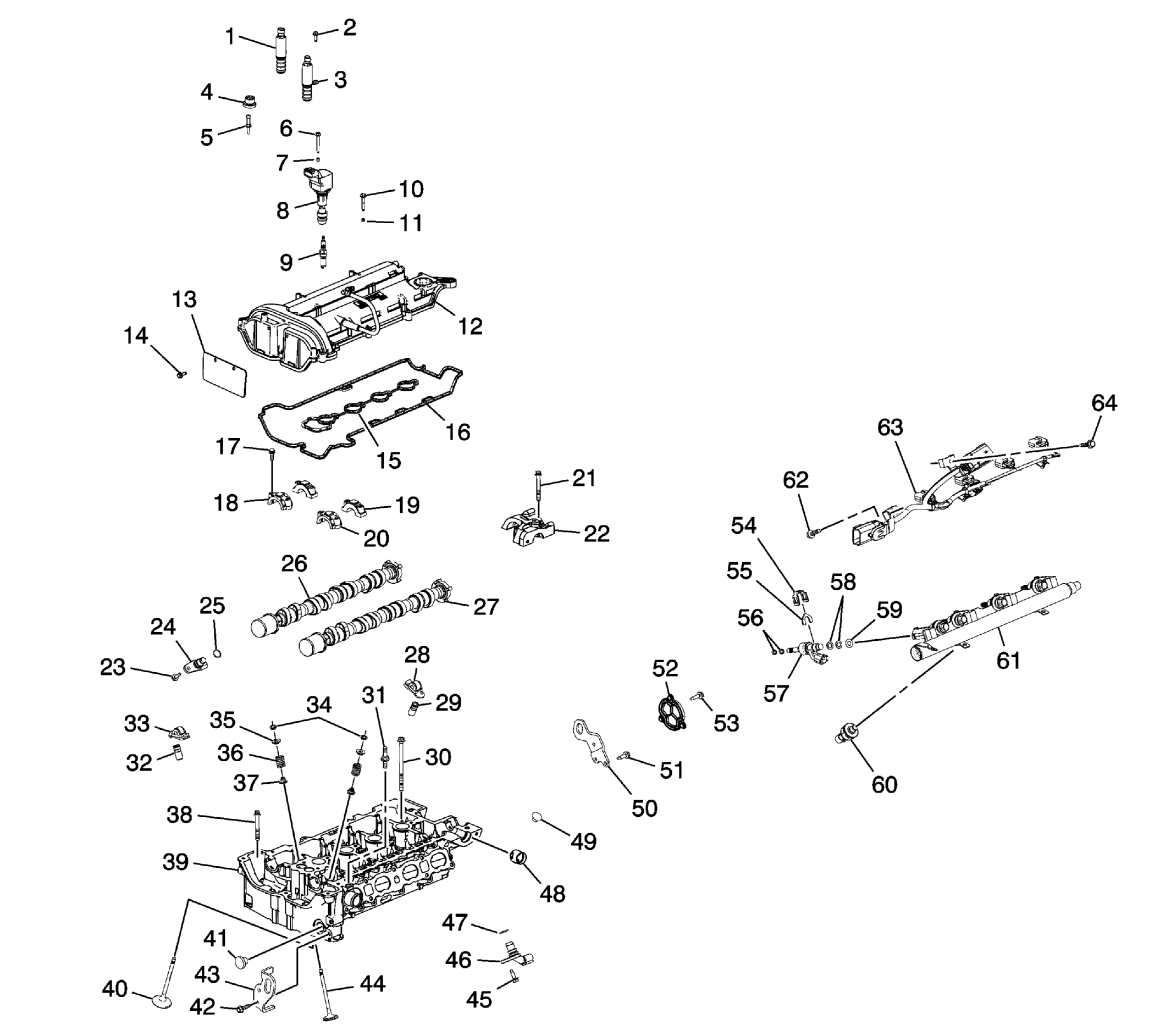

| 1 |
Camshaft Position Actuator Solenoid Valve - Exhaust |
| 2 |
Camshaft Position Actuator Solenoid Valve Bolt |
| 3 |
Camshaft Position Actuator Solenoid Valve - Intake |
| 4 |
Upper Intake Manifold Sight Shield Grommet |
| 5 |
Ball Stud |
| 6 |
Ignition Coil Bolt |
| 7 |
Ignition Coil Bolt Retainer |
| 8 |
Ignition Coil |
| 9 |
Spark Plug |
| 10 |
Camshaft Cover Bolt |
| 11 |
Camshaft Cover Bolt Retainer |
| 12 |
Camshaft Cover |
| 13 |
Camshaft Housing Cover Insulator |
| 14 |
Camshaft Housing Cover Insulator Bolt |
| 15 |
Camshaft Cover Seal |
| 16 |
Camshaft Cover Seal |
| 17 |
Camshaft Bearing Cap Bolt |
| 18 |
Camshaft Bearing Front Cap |
| 19 |
Camshaft Bearing Cap |
| 20 |
Camshaft Bearing Front Cap |
| 21 |
Camshaft Rear Cap Bolt |
| 22 |
Intake Camshaft Rear Cap |
| 23 |
Camshaft Position Sensor Bolt |
| 24 |
Camshaft Position Sensor |
| 25 |
Camshaft Position Sensor O-Ring |
| 26 |
Exhaust Camshaft |
| 27 |
Intake Camshaft |
| 28 |
Roller Finger Follower |
| 29 |
Hydraulic Lash Adjuster |
| 30 |
Cylinder Head Bolt |
| 31 |
Engine Coolant Air Bleed Fitting |
| 32 |
Hydraulic Lash Adjuster |
| 33 |
Roller Finger Follower |
| 34 |
Valve Keys |
| 35 |
Valve Spring Retainer |
| 36 |
Valve Spring |
| 37 |
Valve Stem Seal |
| 38 |
Small Cylinder Head Bolt |
| 39 |
Cylinder Head |
| 40 |
Valve |
| 41 |
Timing Chain Guide Bolt Access Hole Plug |
| 42 |
Front Lift Bracket Bolt |
| 43 |
Front Lift Bracket |
| 44 |
Valve |
| 45 |
Camshaft Position Sensor Bolt |
| 46 |
Camshaft Position Sensor |
| 47 |
Camshaft Position Sensor O-Ring |
| 48 |
High Pressure Fuel Pump Roller Lifter |
| 49 |
Cylinder Head Gallery Plug |
| 50 |
Rear Lift Bracket |
| 51 |
Rear Lift Bracket Bolt |
| 52 |
Cylinder Head Cover Plate |
| 53 |
Cylinder Head Cover Plate Bolt |
| 54 |
Fuel Injector Retainer |
| 55 |
Fuel Injector Bushing |
| 56 |
Fuel Injector Seal |
| 57 |
Multiport Fuel Injector |
| 58 |
Fuel Injector Spacer |
| 59 |
Fuel Injector O-Ring |
| 60 |
Fuel Injection Fuel Pressure Sensor Assembly |
| 61 |
Multiport Fuel Injection Fuel Rail |
| 62 |
Fuel Injector Wiring Harness Bolt |
| 63 |
Fuel Injector Wiring Harness |
| 64 |
Fuel Injector Wiring Harness Bolt |
