120-Volt Accessory Power Receptacle Replacement
120-Volt Accessory Power Receptacle Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console rear cover panel. Refer to Front Floor Console Rear Cover Replacement . |
|

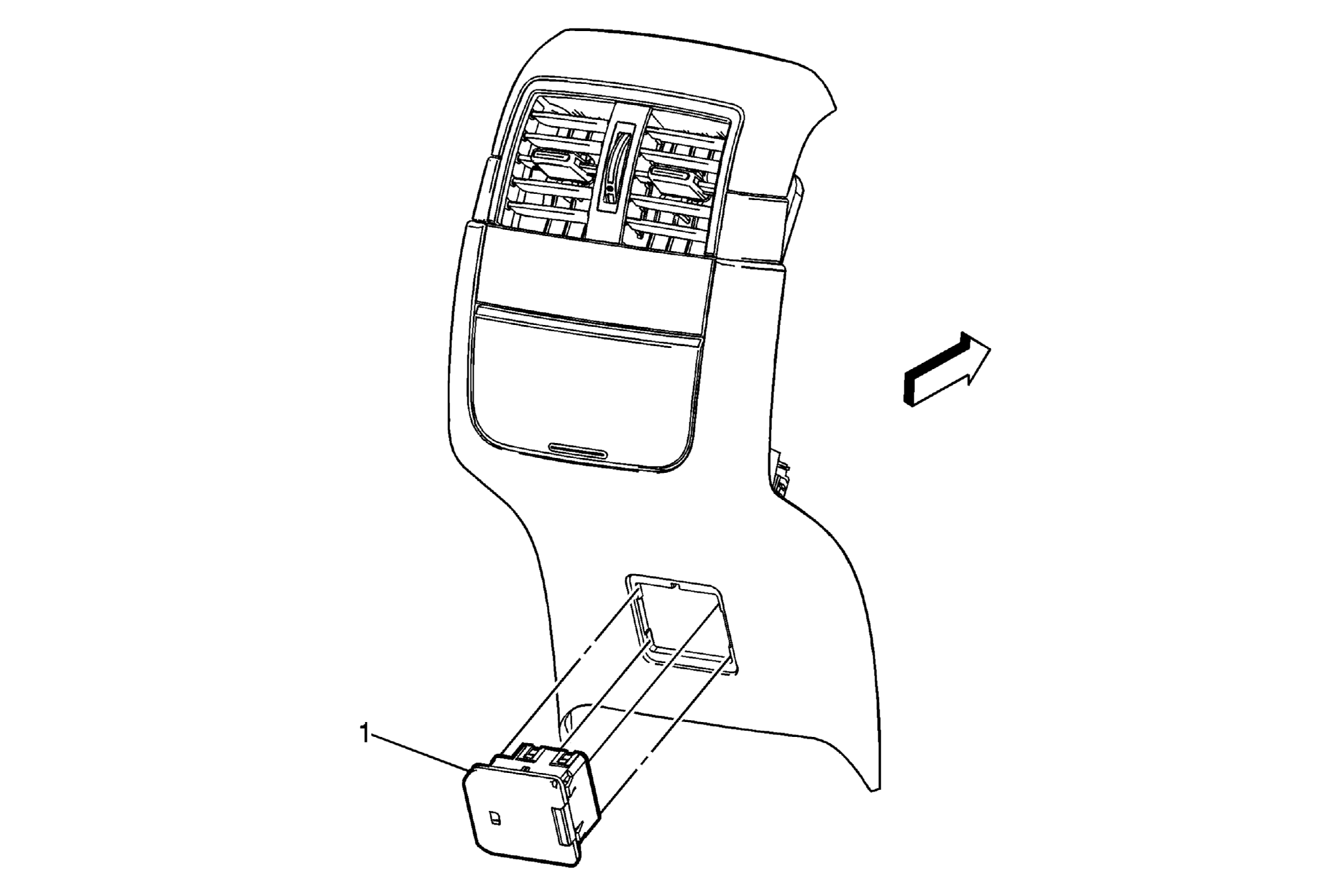

| 1 | Accessory Power Receptacle Assembly Procedure Push in the 4 tabs to release the accessory power receptacle from the rear console trim plate. |
