Front Compartment Fuse Block Housing Replacement

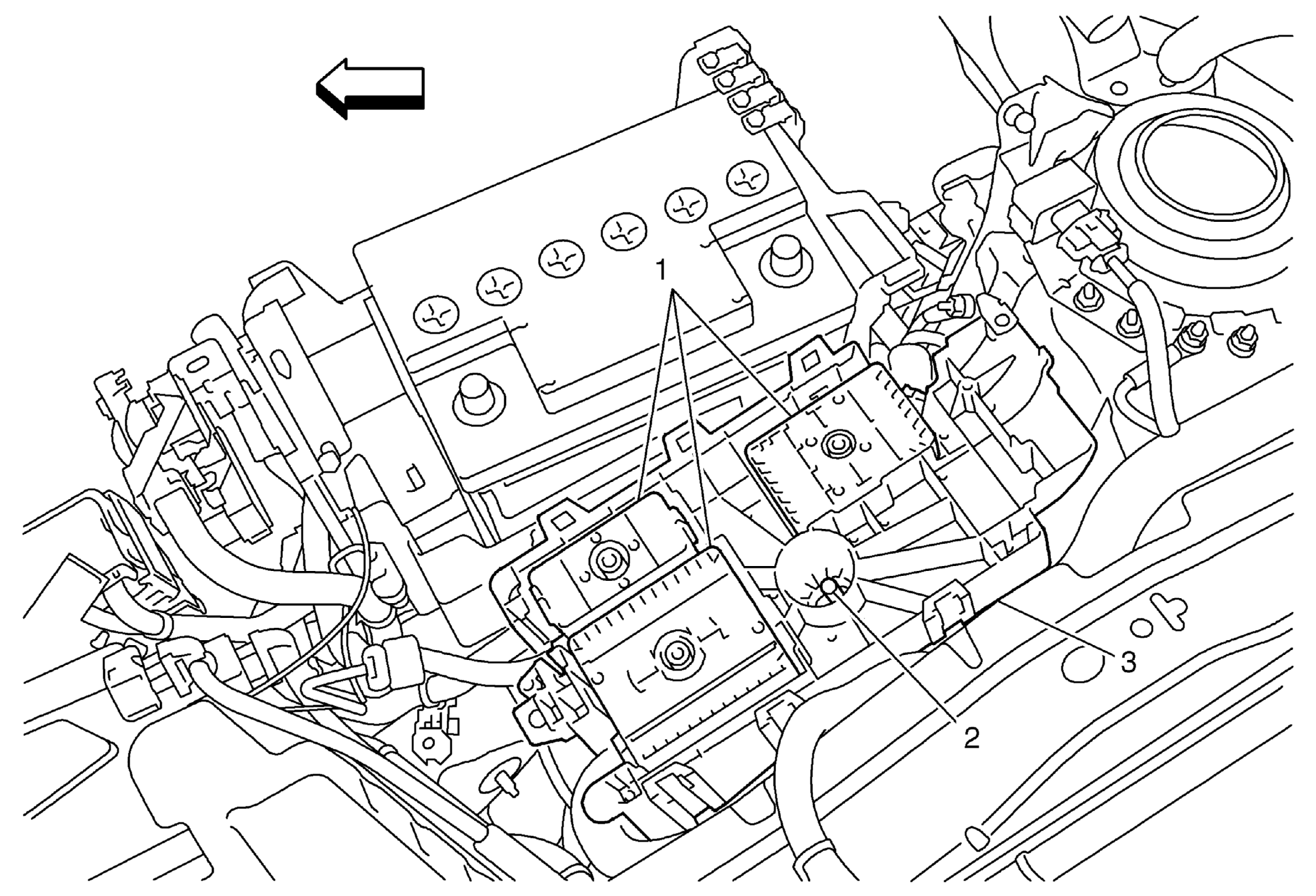

Fig 1: Front Compartment Fuse Block Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery ground cable. Refer to Battery Negative Cable Replacement . Disconnect the battery positive cable. Refer to Battery Positive Cable Replacement . Remove the front compartment fuse block housing cover. Refer to Front Compartment Fuse Block Housing Cover Replacement . Remove the underhood electrical center or junction block. Refer to Underhood Electrical Center or Junction Block Replacement .
1	Wiring Harness Plug (Qty: 3) Procedure Release the wiring harness plugs.
2	Front Compartment Fuse Block Housing Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Front Compartment Fuse Block Housing Procedure Remove the front compartment fuse block housing.
