Plenum Water Deflector Support Replacement

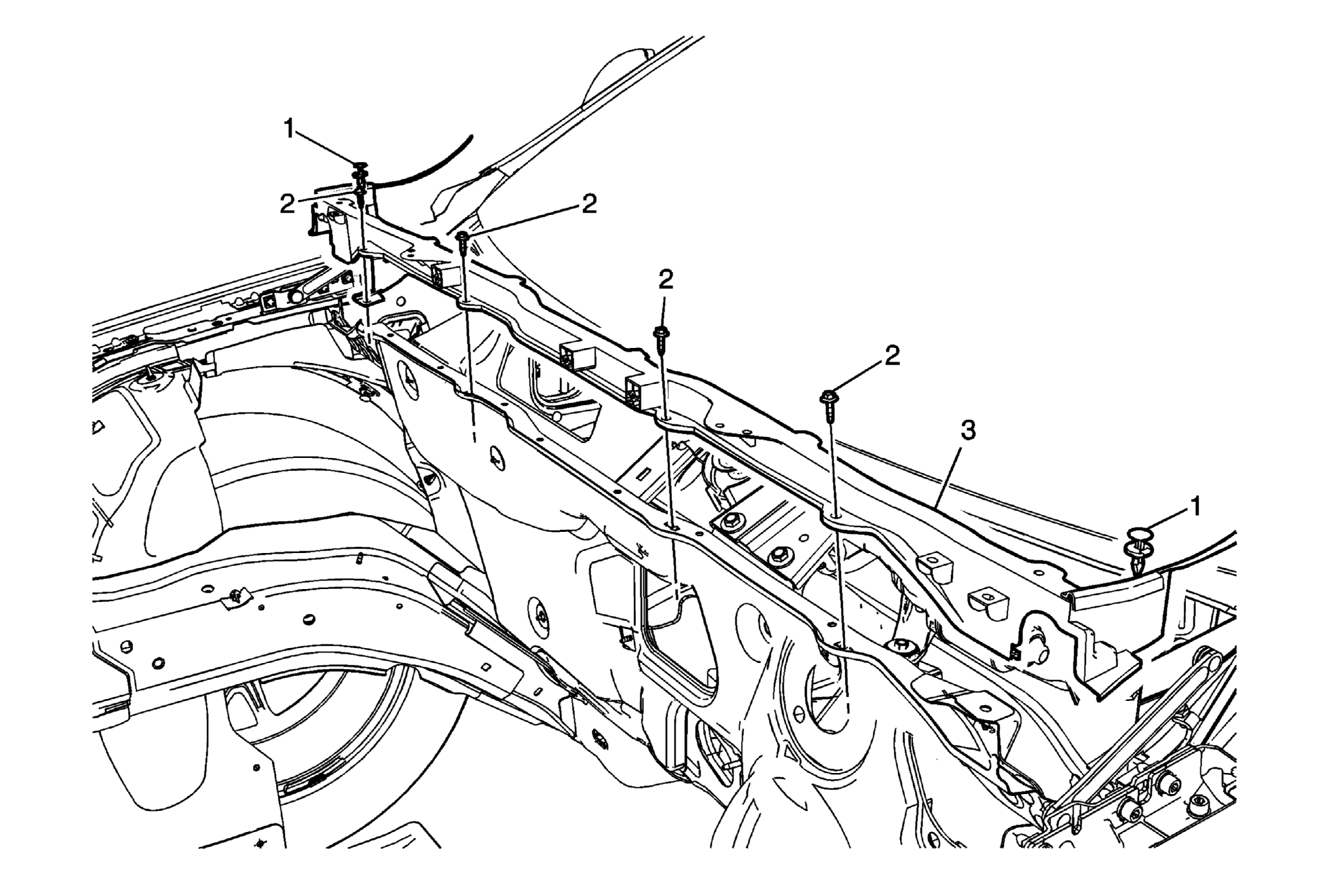

Fig 1: Plenum Water Deflector Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly. Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement . Remove the air inlet grille panel water deflector. Refer to Air Inlet Grille Panel Water Deflector Replacement .
1	Push Pin Retainer (Qty: 2)
2	Plenum Water Deflector Support Screw (Qty: 4)
3	Plenum Water Deflector Support
