Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Steering Wheel Secondary/Configurable Controls Wiring Schematics
Steering Wheel Secondary/Configurable Controls Wiring Schematics

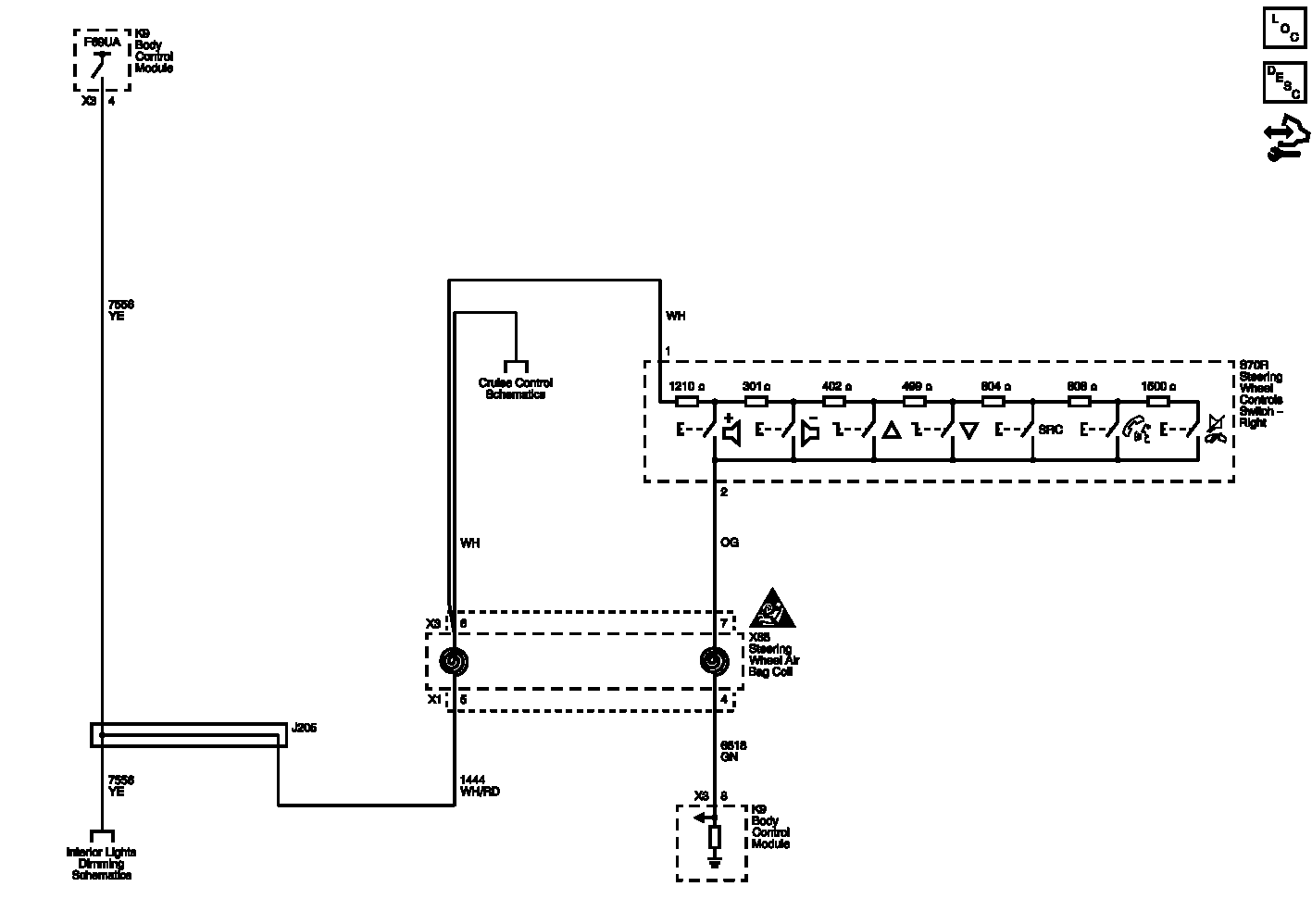

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
