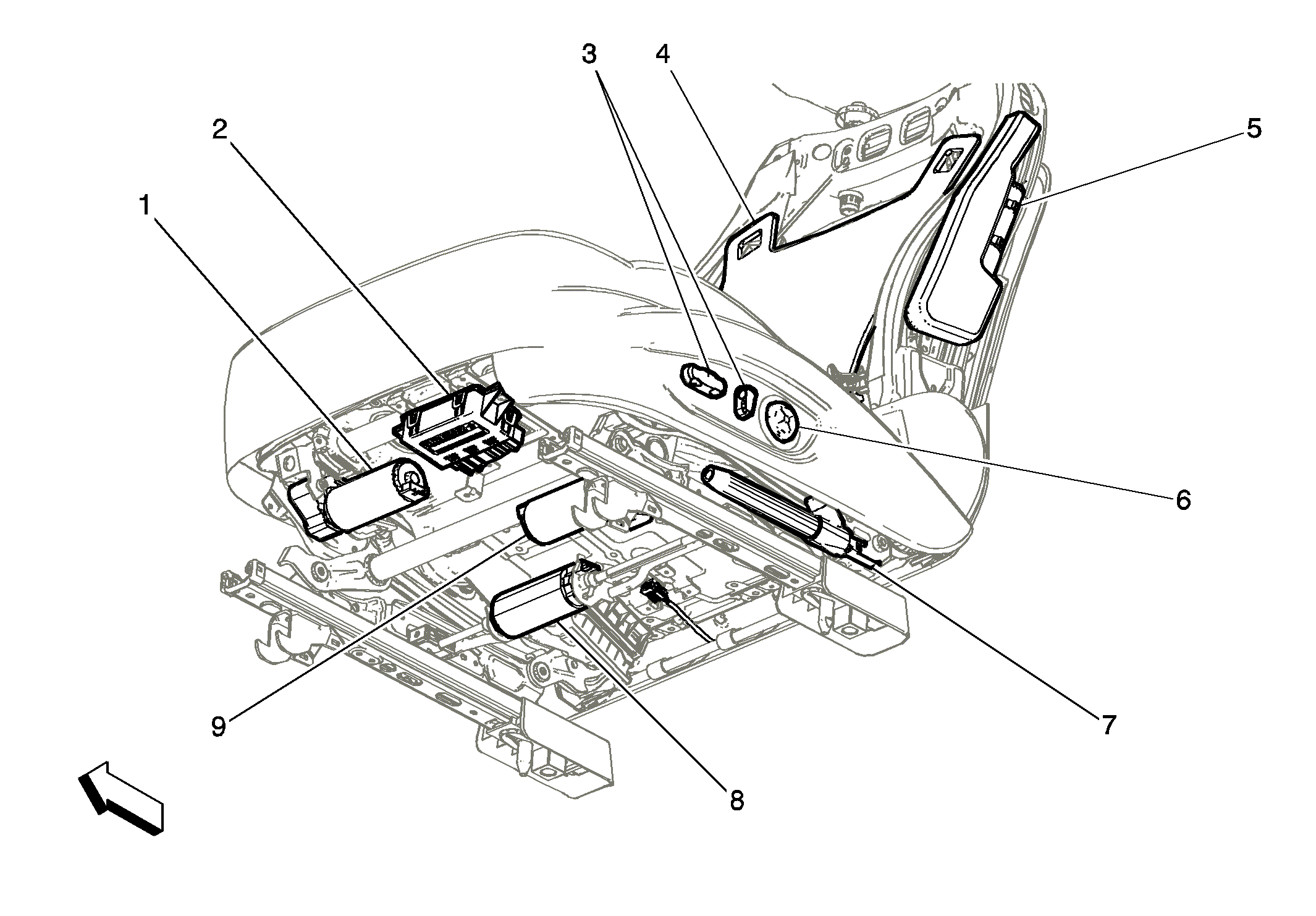

Bottom of Driver Seat Components
Bottom of Driver Seat Components
| Component Name | Callout |
|---|---|
| M50D Seat Front Vertical Motor - Driver | 1 |
| K29 Seat Heating Control Module (KA1) | 2 |
| S64D Seat Adjuster Switch - Driver | 3 |
| E14A Seat Heating Elemant - Driver Back (KA1) | 4 |
| F106LF Seat Air Bag - Left Front | 5 |
| S65D Seat Lumbar Support Switch - Driver | 6 |
| F113D Seat Belt Anchor Pretensioner - Driver | 7 |
| M51D Seat Horizontal Motor - Driver | 8 |
| M55D Seat Rear Vertical Motor - Driver | 9 |
