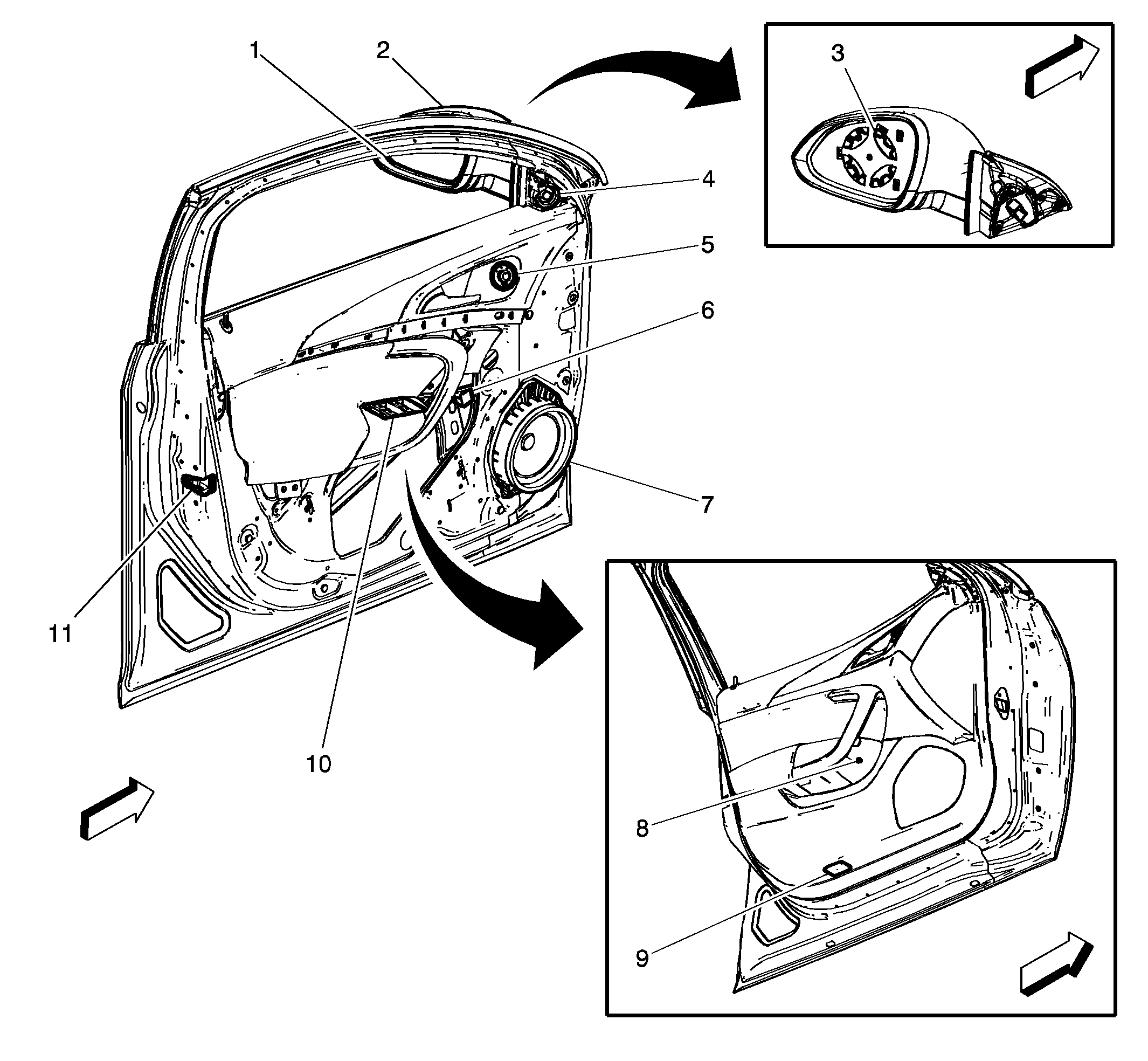

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| E17D Outside Rearview Mirror Glass - Driver | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| M77D Outside Rearview Mirror Motor - Driver | 3 |
| P19H Speaker - Left Front Tweeter | 4 |
| S52 Outside Rearview Mirror Switch | 5 |
| M74D Window Motor - Driver | 6 |
| P19AG Speaker - Left Front Door | 7 |
| E55D Flood Lamp - Driver Door Pocket | 8 |
| E8D Door Courtesy Lamp - Driver | 9 |
| S79D Window Switch - Driver | 10 |
| A23D Door Latch Assembly - Driver | 11 |
