Power, Ground, Data Communications And Subsystem References (1 Of 4)
Power, Ground, Data Communications And Subsystem References (1 Of 4)

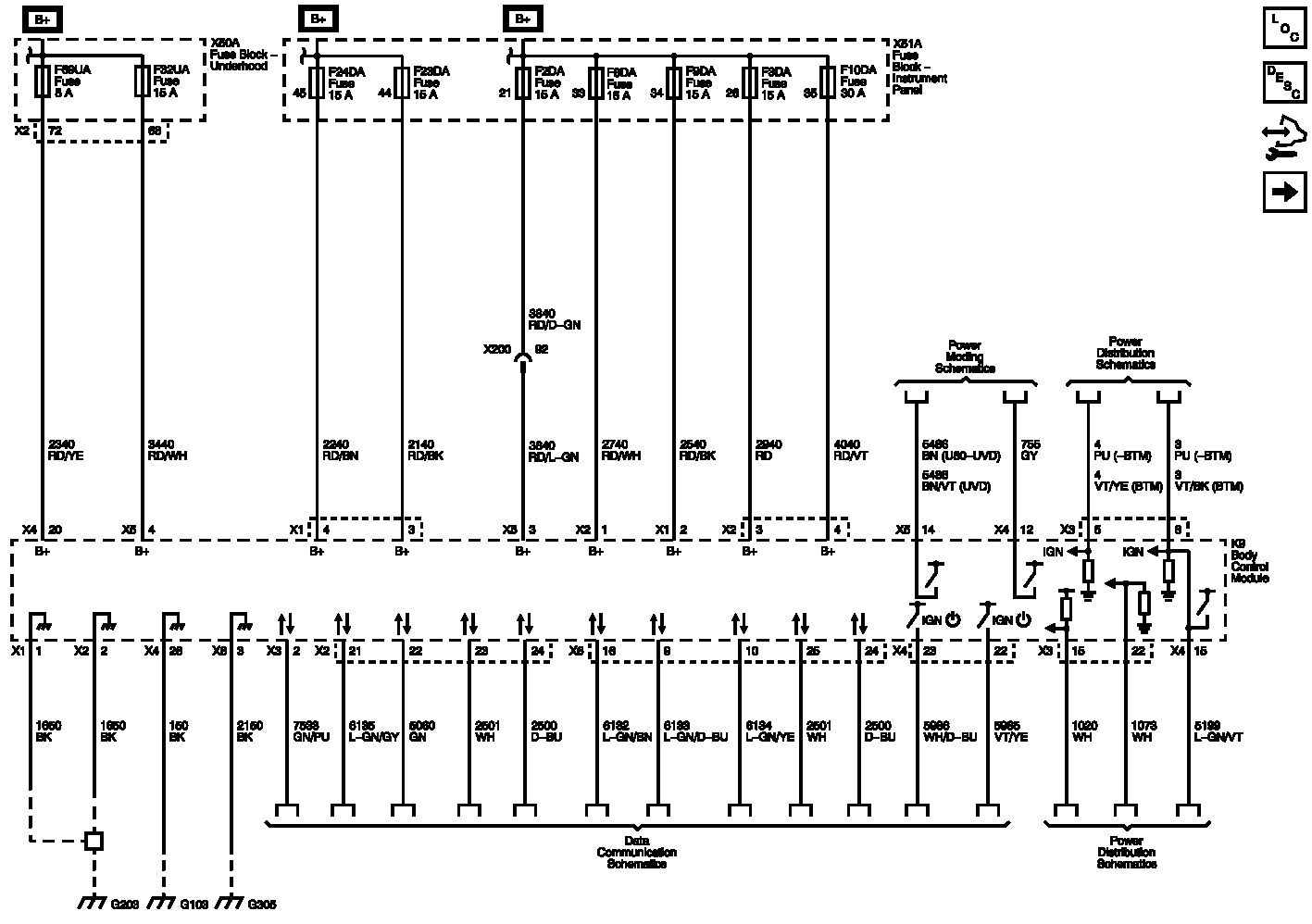

Fig 1: Power, Ground, Data Communications And Subsystem References (1 Of 4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
