Moveable Window Schematics

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front
GM2204134Courtesy of GENERAL MOTORS CORP.

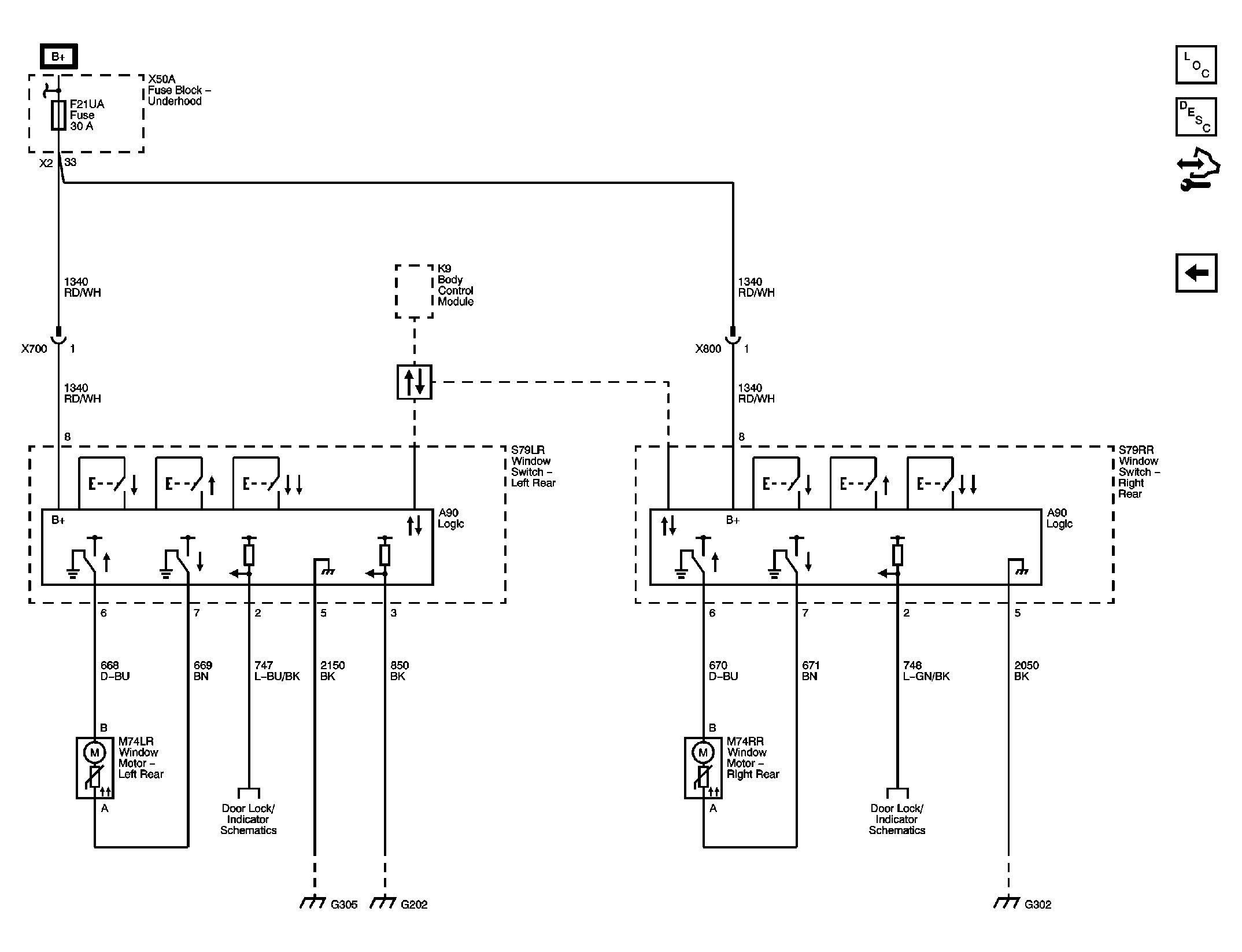

Fig 2: Rear
GM2204137Courtesy of GENERAL MOTORS CORP.
