Accessory Switch Replacement

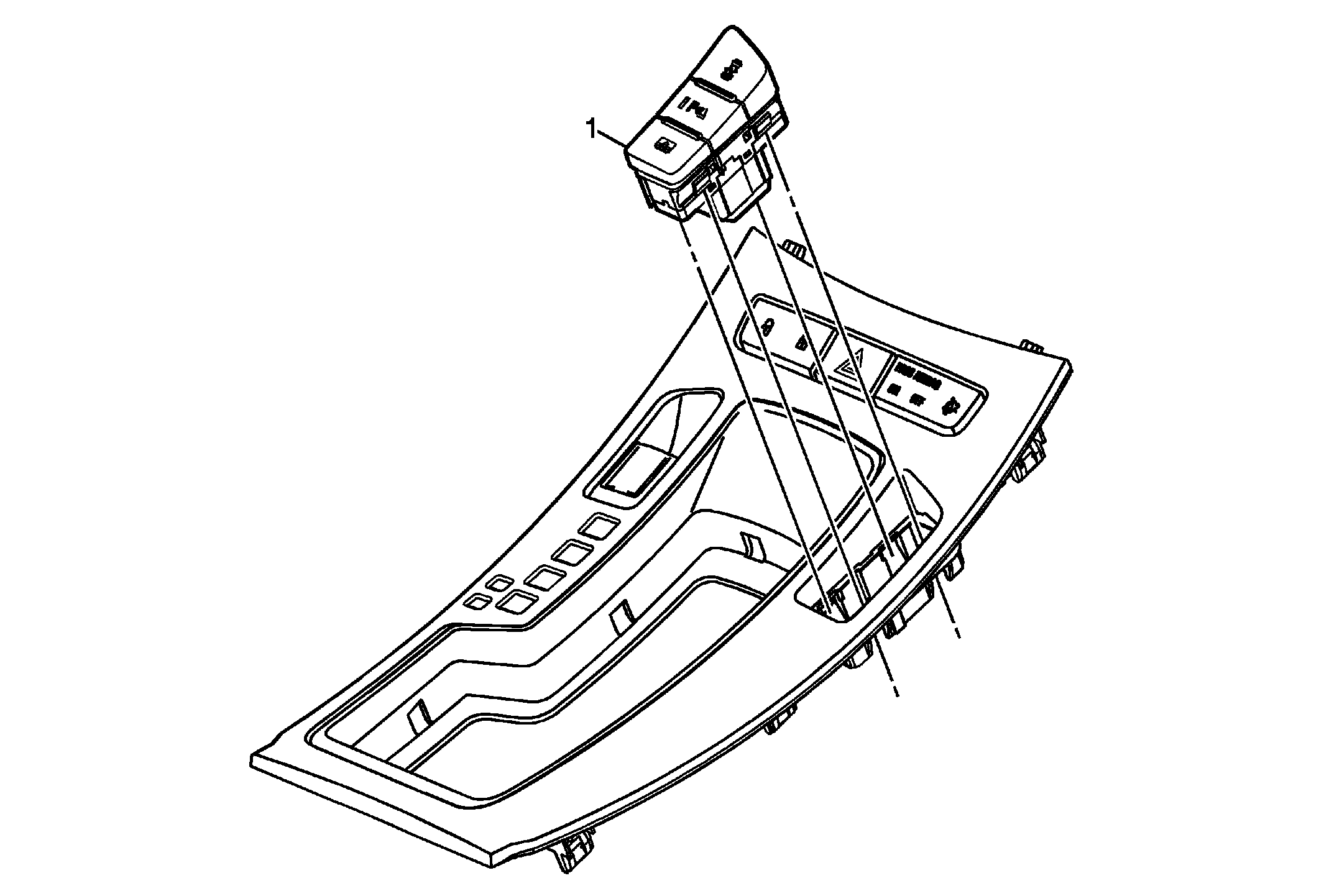

Fig 1: Accessory Switch
GM2200219Courtesy of GENERAL MOTORS COMPANY
Accessory Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the automatic transmission control indicator bezel. Refer to Automatic Transmission Control Indicator Bezel Replacement .
1 Accessory Switch Assembly
Procedure
Push in tabs to release the switch from the bezel.
