Release Systems

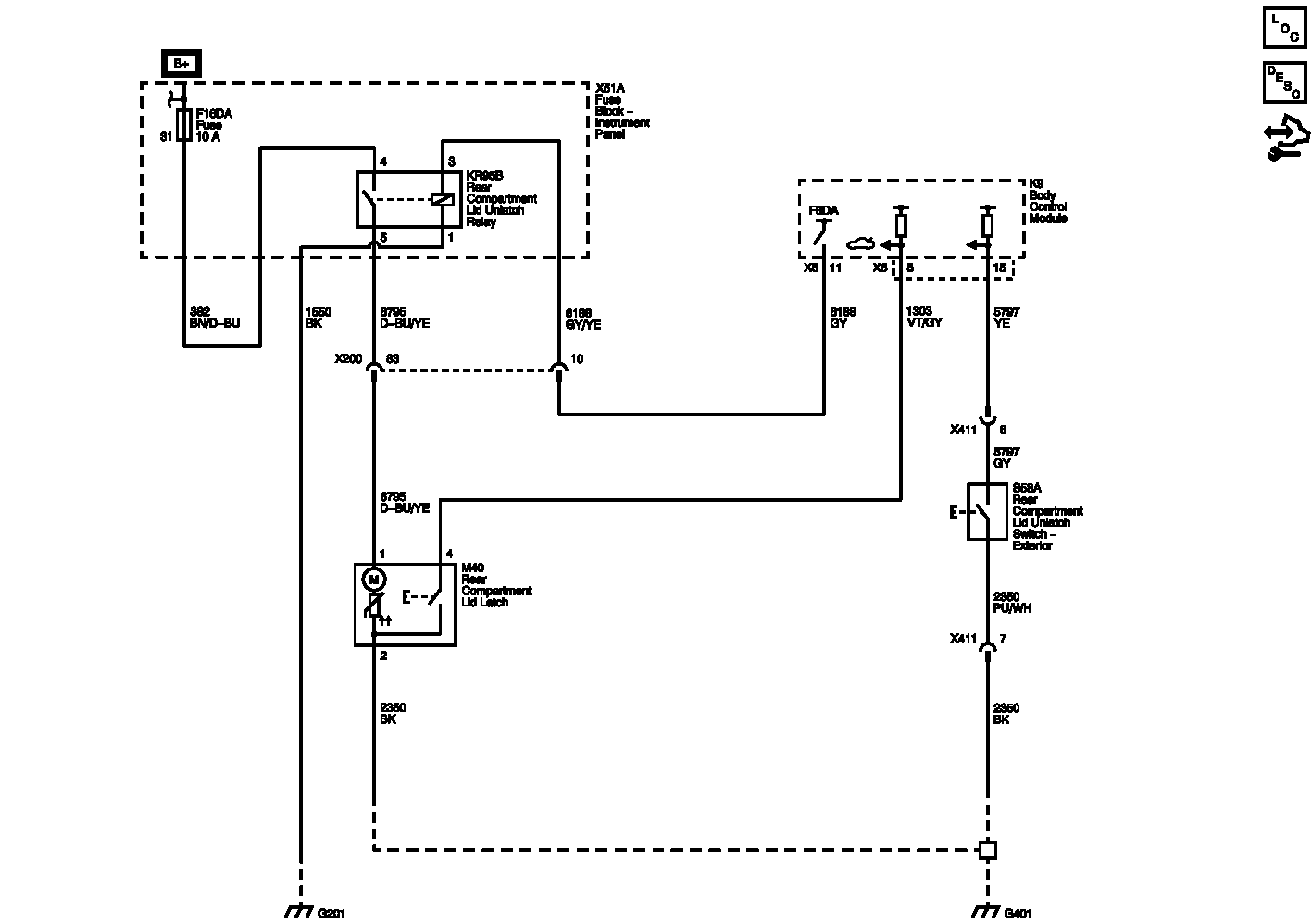

Fig 1: Release Systems Wiring Schematic

GM2577435

Courtesy of GENERAL MOTORS COMPANY
