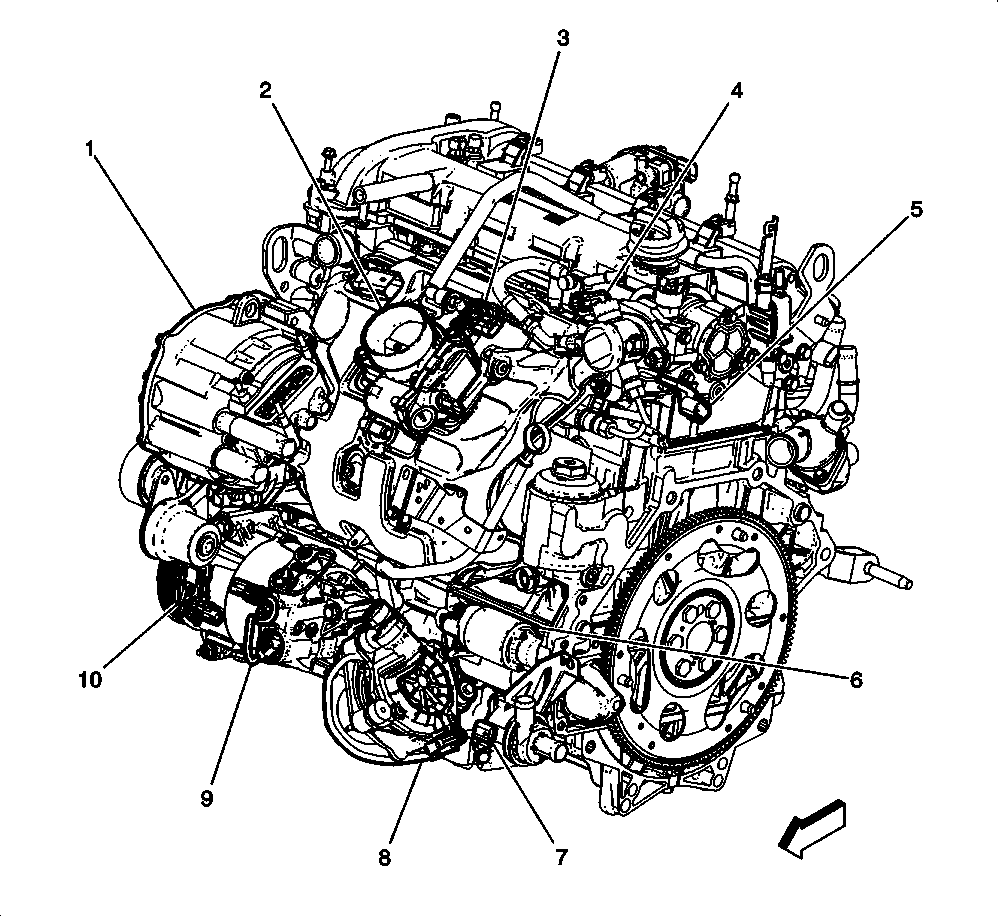

Left Front of Engine Components (LUK 1 Of 2)
Left Front of Engine Components (LUK 1 Of 2)
| Component Name | Callout |
|---|---|
| A15 Starter/Generator | 1 |
| Q38 Throttle Body | 2 |
| B74 Manifold Absolute Pressure Sensor | 3 |
| G18 High Pressure Fuel Pump | 4 |
| B23F Camshaft Position Sensor - Intake | 5 |
| M64 Starter Motor | 6 |
| G22 Starter/Generator Control Module Coolant Pump | 7 |
| G21 Secondary Air Injection Pump | 8 |
| Q46 A/C Compressor Solenoid Valve | 9 |
| Q2 A/C Compressor Clutch | 10 |
