LaCrosse Base, 2.4L Eng VIN R
>>
Repair and Diagnosis
>>
External Pages
>>
Different variant/trim
>>
Section 11 (Hybrid/EV Control System)
>>
Wiring Schematics
>>
Hybrid Controls Wiring Schematics
>>
Drive Motor Control
Drive Motor Control
WARNING:
This page is about a different variant/trim than selected.

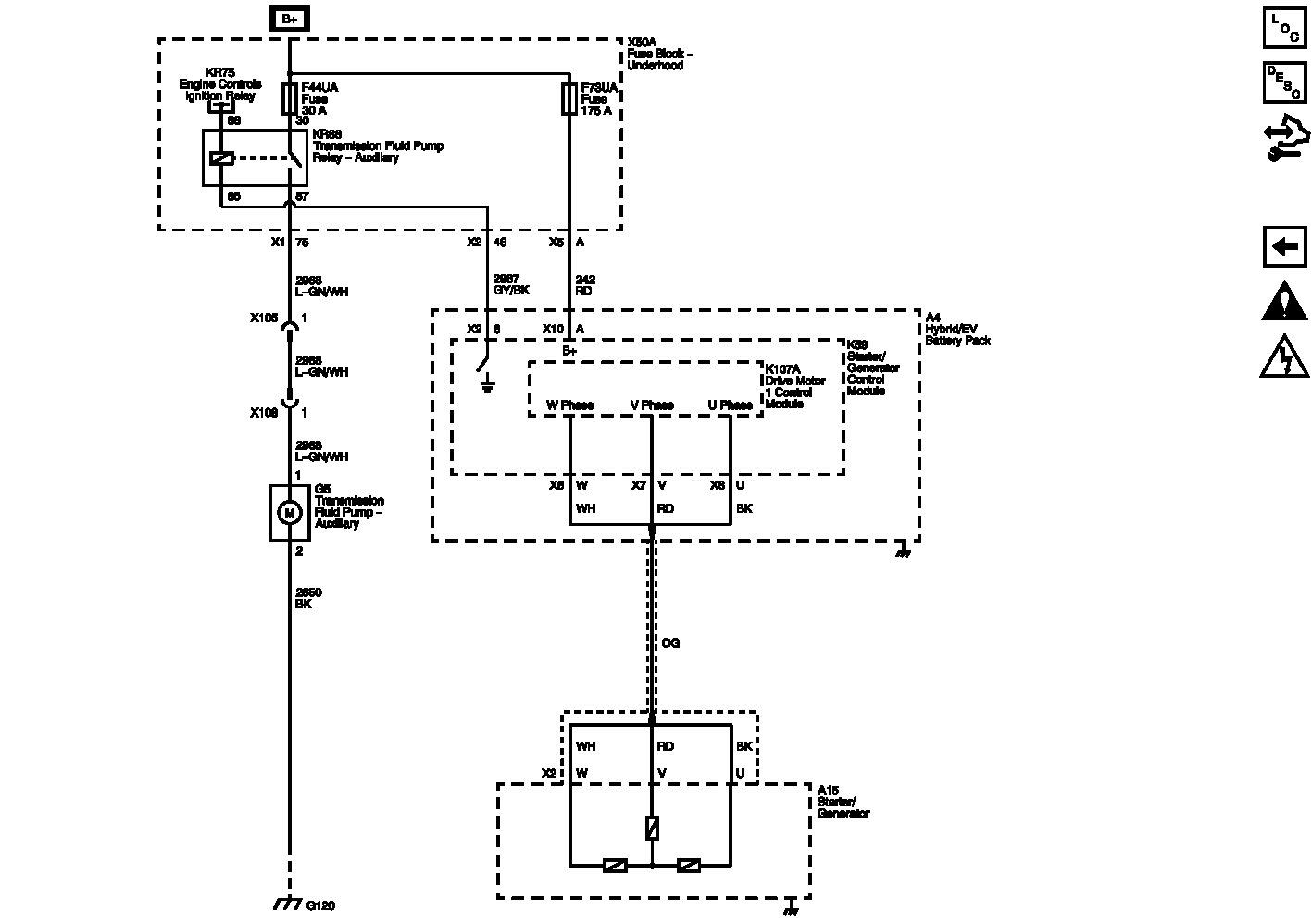

Fig 1: Drive Motor Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
