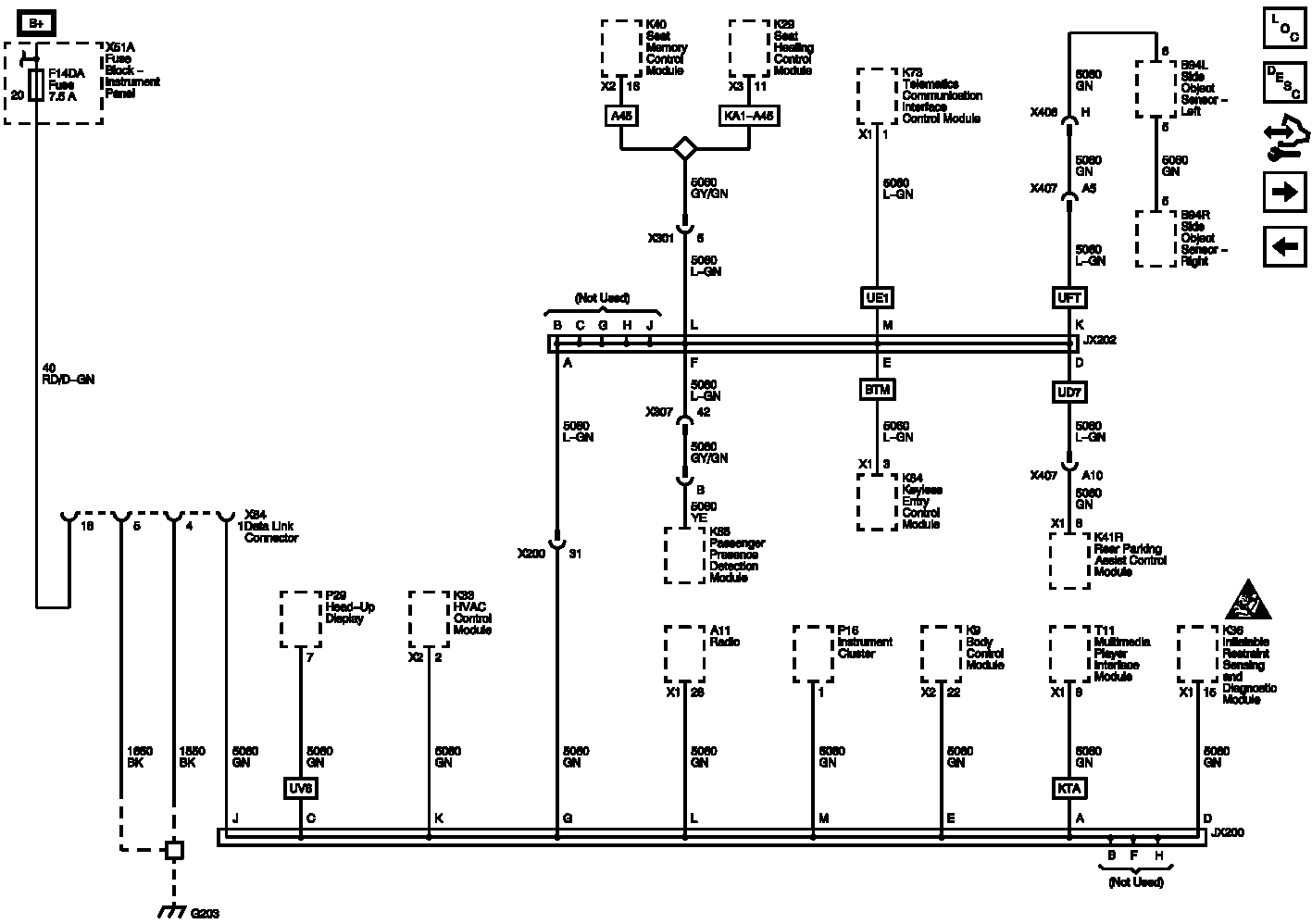

Home >> Buick >> 2012 >> LaCrosse Base, 2.4L Eng VIN R >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Schematics >> Data Communication Wiring Schematics >> Low Speed GMLAN
