Stability Controls

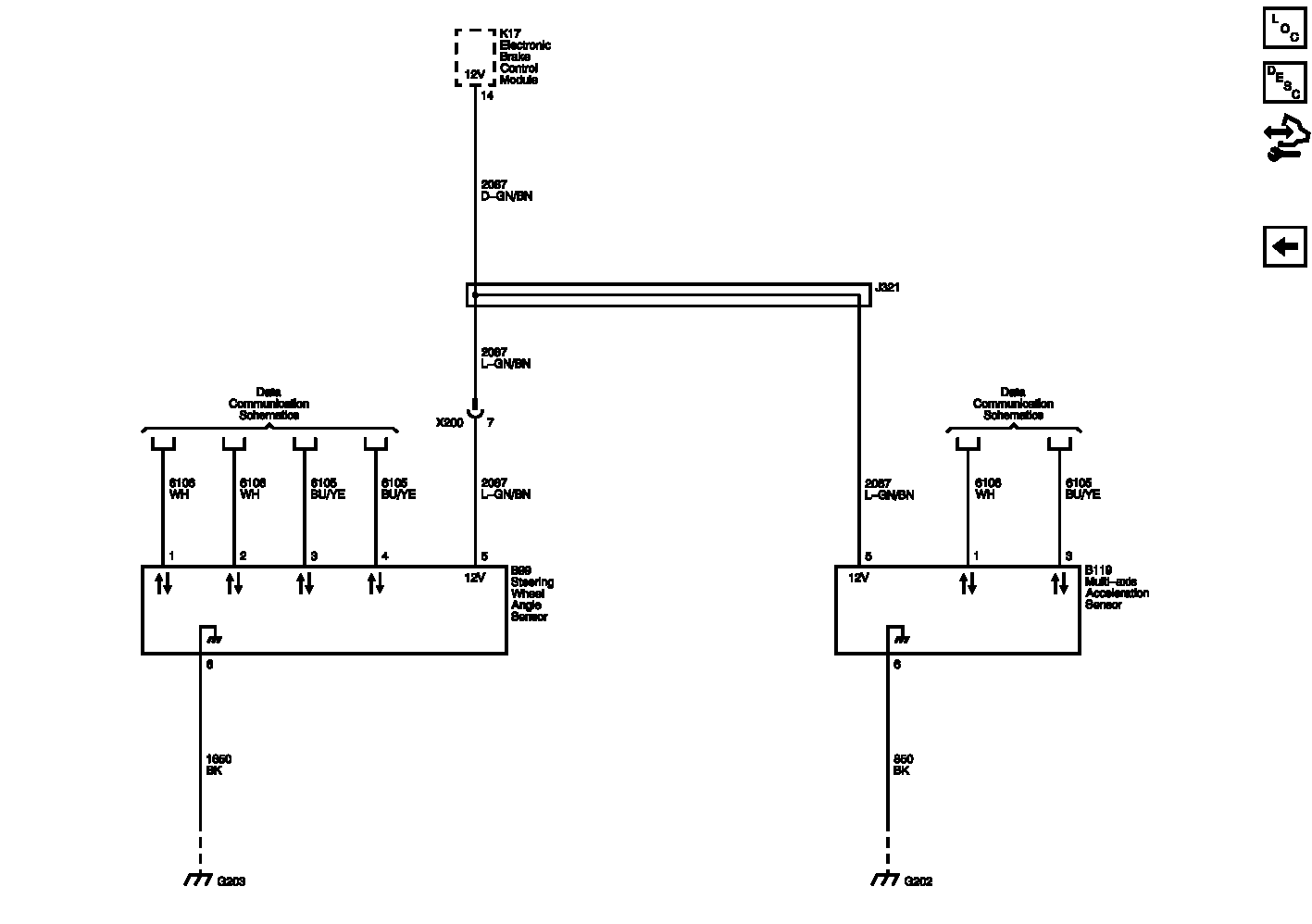

Fig 1: Stability Controls Wiring Schematic

GM2577447

Courtesy of GENERAL MOTORS COMPANY
