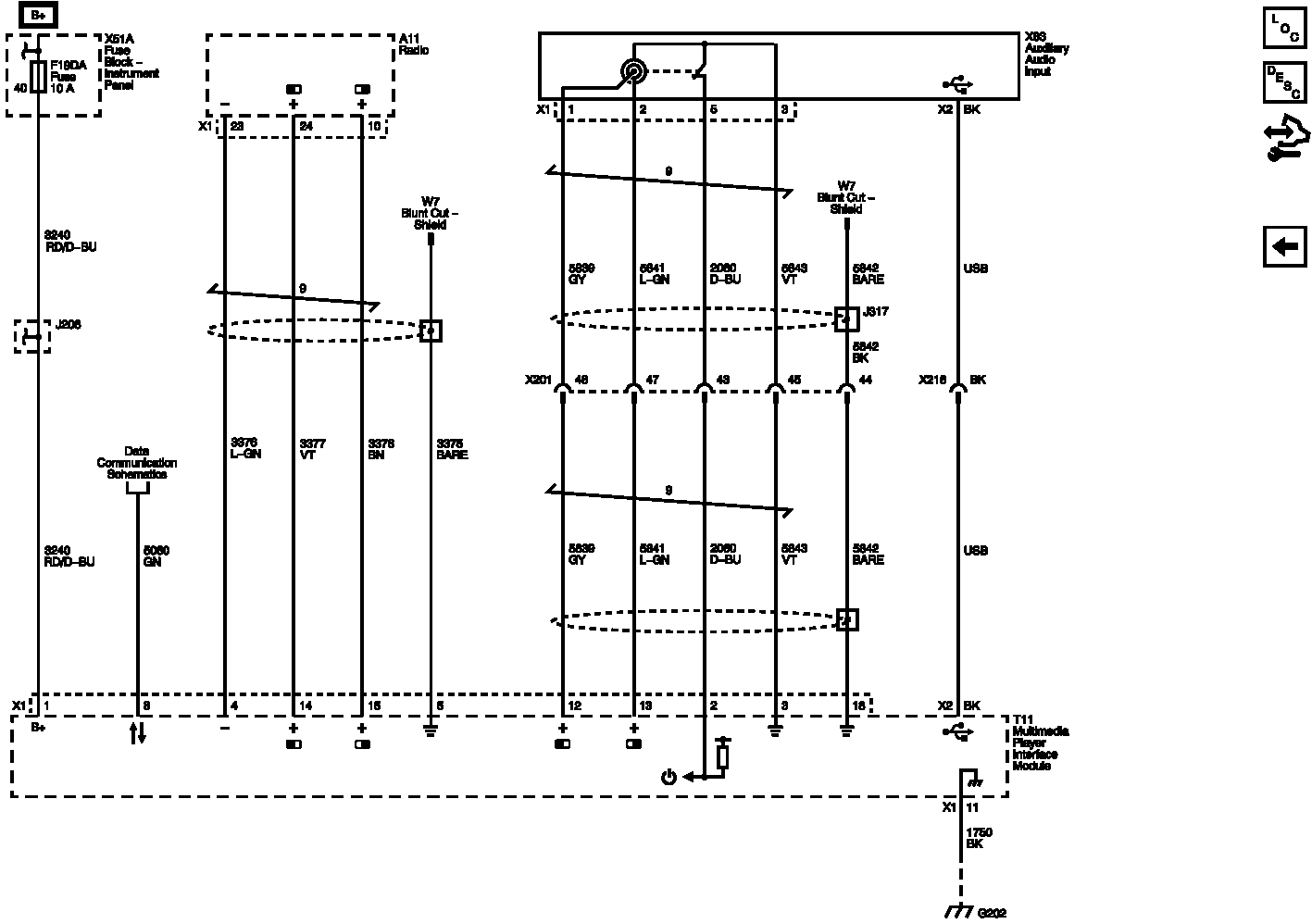

Home >> Buick >> 2012 >> LaCrosse Base, 2.4L Eng VIN R >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Wiring Schematics >> Radio/Navigation System Wiring Schematics >> USB Interface (KTA)
