Backup Lamp Bulb Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement . |
|

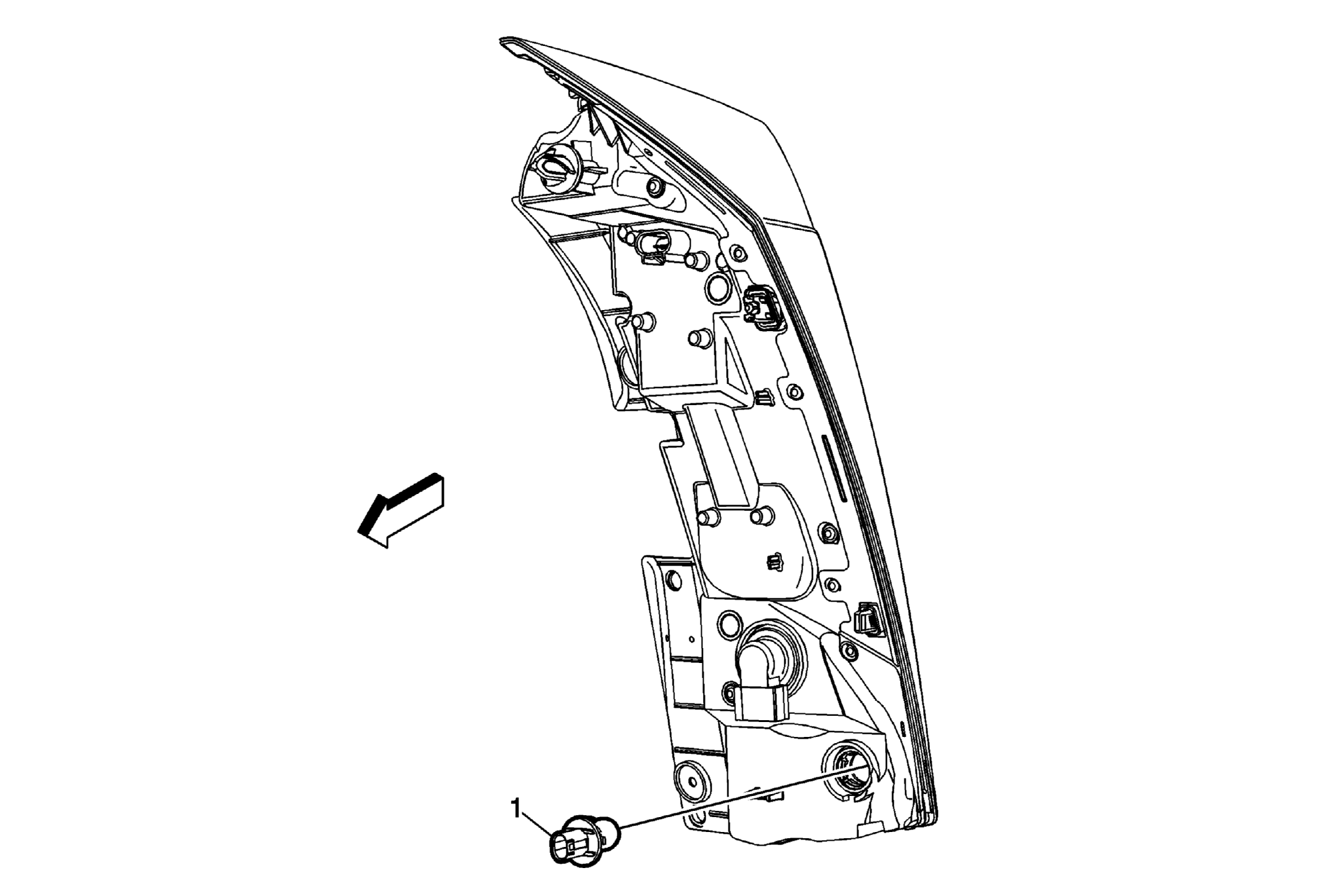

| 1 | Back Up Lamp Bulb
WARNING:
Refer to Halogen Bulb Warning
. Procedure: Rotate the back up lamp bulb socket counterclockwise from the tail lamp assembly. |
