Rocker Panel Front Molding Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

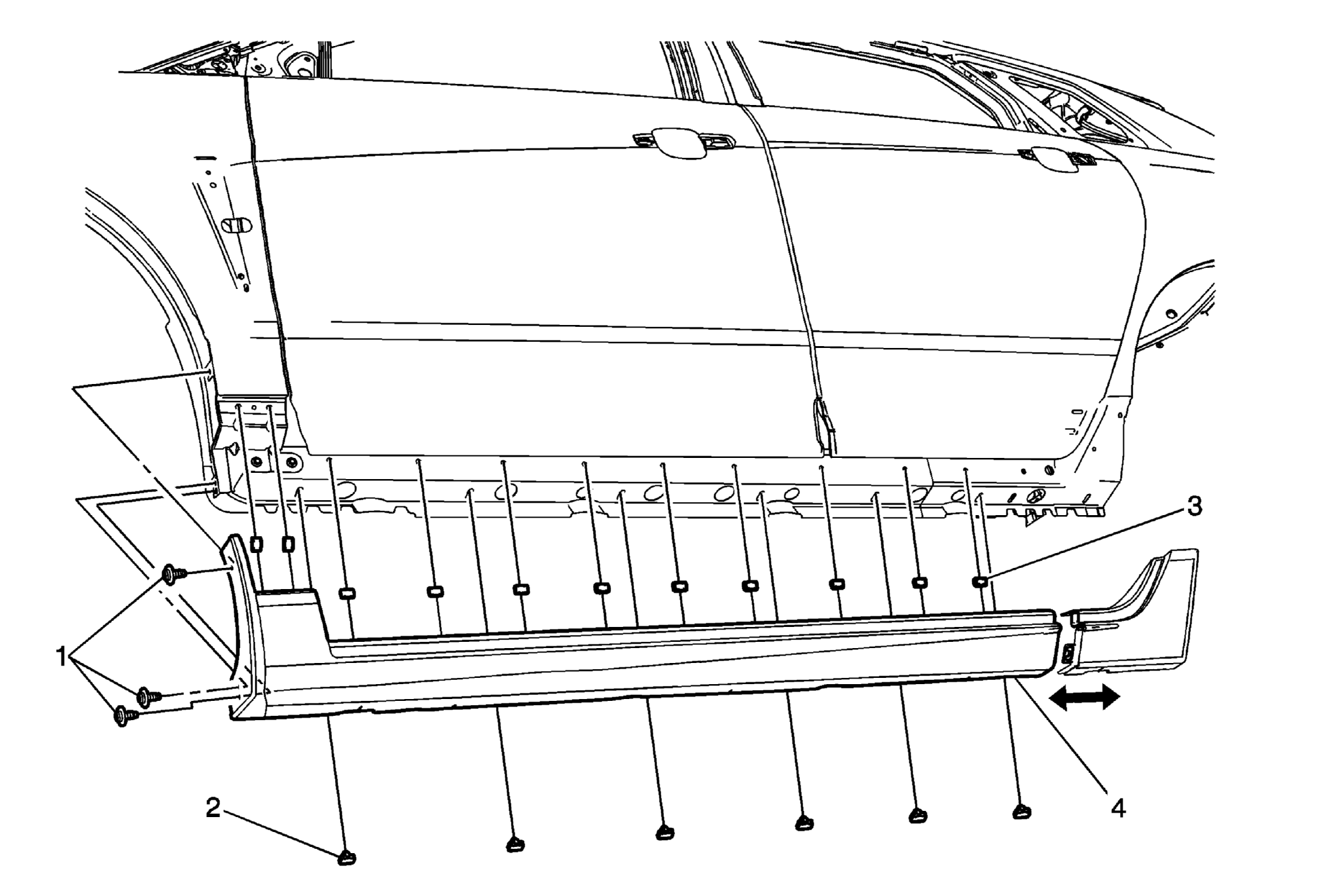

Fig 1: View Of Rocker Panel Front Molding & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open both side doors in order to remove the rocker panel front molding assembly. Remove the rear rocker panel molding assembly. Refer to Rocker Panel Rear Molding Replacement
1	Rocker Panel Front Molding Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the 2 front rocker panel screws. Release the 6 lower rocker molding retainers. Release the 11 upper rocker molding retainers. Tighten: 1.5 N.m (13 lb in)
2	Rocker Panel Molding Lower Retainer (Qty: 6)
3	Rocker Panel Molding Upper Retainer (Qty: 11)
4	Rocker Panel Front Molding Assembly Tip: Replace the retainer clips as needed.
