Front Fender Inner Panel Access Opening Cover Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

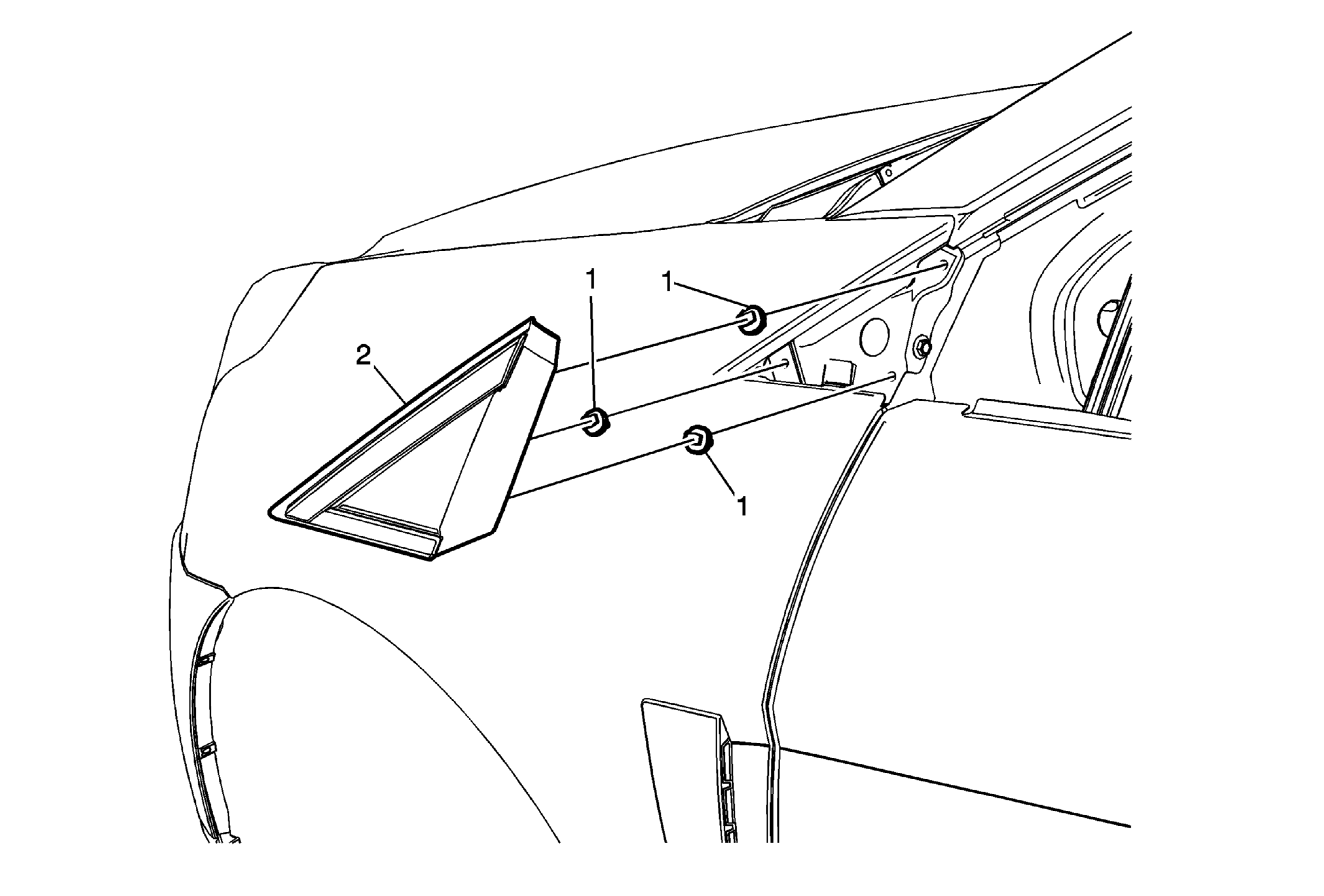

| Callout |
Component Name |
| 1 |
Front Fender Inner Panel Access Opening Cover Retainer (Qty: 3)
Tip:
Using a suitable flat-bladed tool, disengage the three retainers. |
| 2 |
Front Fender Inner Panel Access Opening Cover |
