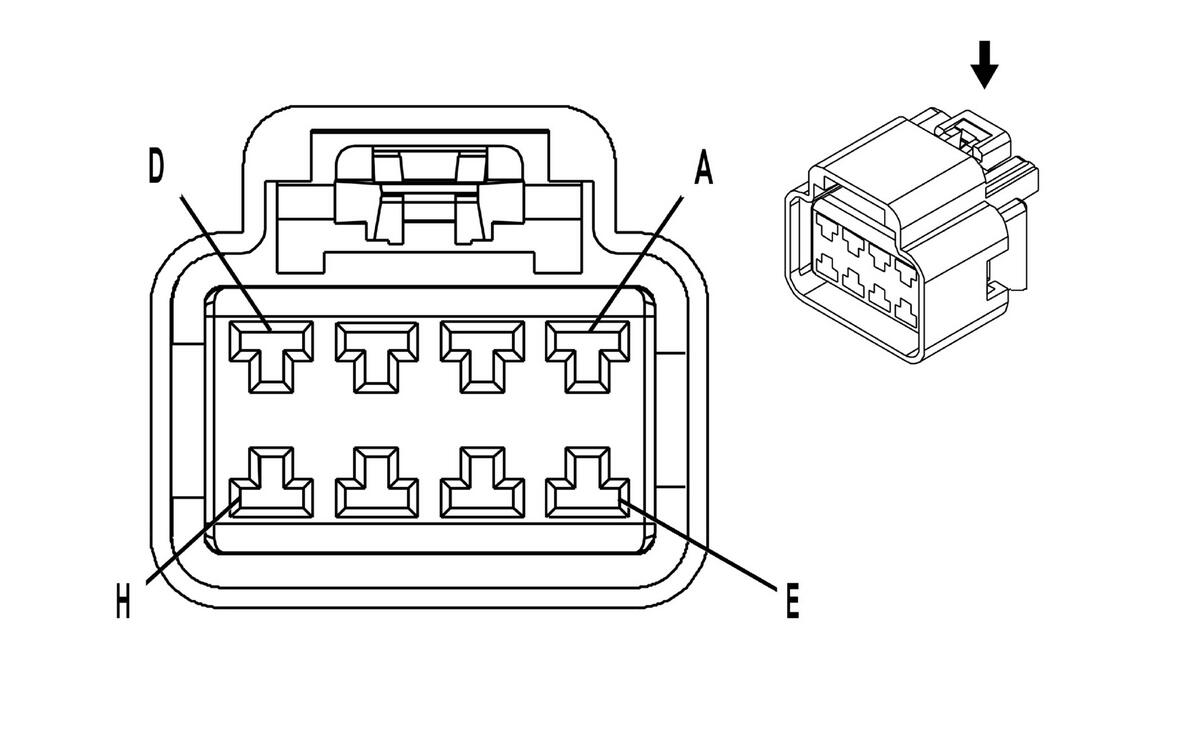

Window Switch - Driver X2 (without AXE)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Door Trim Panel
- OEM Connector: 19177577
- Service Connector: 19153751
- Description: 8-Way F GT 280 Series (BK)
|
Terminal Part Information
- Pins: A, D, E, H
- Terminated Lead: 13575756
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304713/19
- Core/Insulation Crimp: F/D
- Pins: F, G
- Terminated Lead: 13575753
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304711/8
- Core/Insulation Crimp: E/A
|
Window Switch - Driver X2 (without AXE)
| Pin |
Wire |
Circuit |
Function |
| A |
3 BK |
550 |
Ground |
| B-C |
- |
- |
Not Used |
| D |
3 BN |
165 |
Power Window Motor Left Front Down Control |
| E |
3 D-BU |
164 |
Power Window Motor Left Front Up Control |
| F |
0.35 L-BU/WH |
280 |
Power Window Master Switch Lockout Right Rear Signal |
| G |
0.35 YE |
43 |
Ignition Voltage |
| H |
3 RD/WH |
3340 |
Battery Positive Voltage |
