Window Switch - Driver X1 (without AXE)
 Courtesy of
|

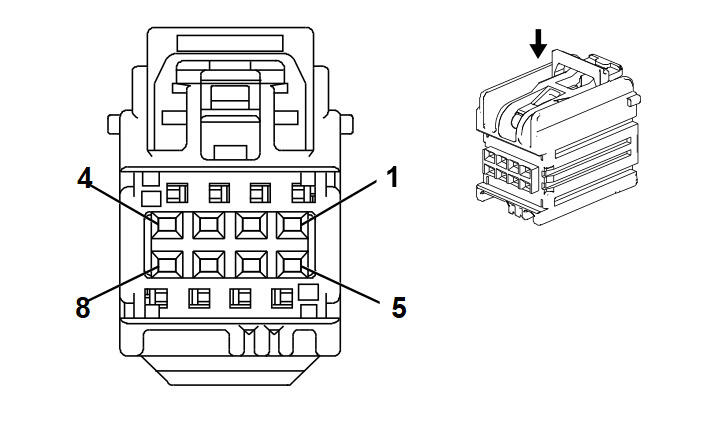

Connector Part Information
- Harness Type: Driver Door Trim Panel
- OEM Connector: 7283-9028-30
- Service Connector: 13576542
- Description: 8-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
Window Switch - Driver X1 (without AXE)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PU/WH |
1382 |
LED Dimming Signal |
| 2 |
0.35 D-BU |
1307 |
Power Window Master Switch Lockout Signal |
| 3 |
0.35 PU |
169 |
Power Window Master Switch Left Rear Down Signal |
| 4 |
0.35 D-GN |
168 |
Power Window Master Switch Left Rear Up Signal |
| 5 |
0.35 TN |
167 |
Power Window Master Switch Right Front Down Signal |
| 6 |
0.35 L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
| 7 |
0.35 PU |
171 |
Power Window Master Switch Right Rear Down Signal |
| 8 |
0.35 L-GN |
170 |
Power Window Master Switch Right Rear Up Signal |
