Window Motor - Driver (AXE)
 Courtesy of
|

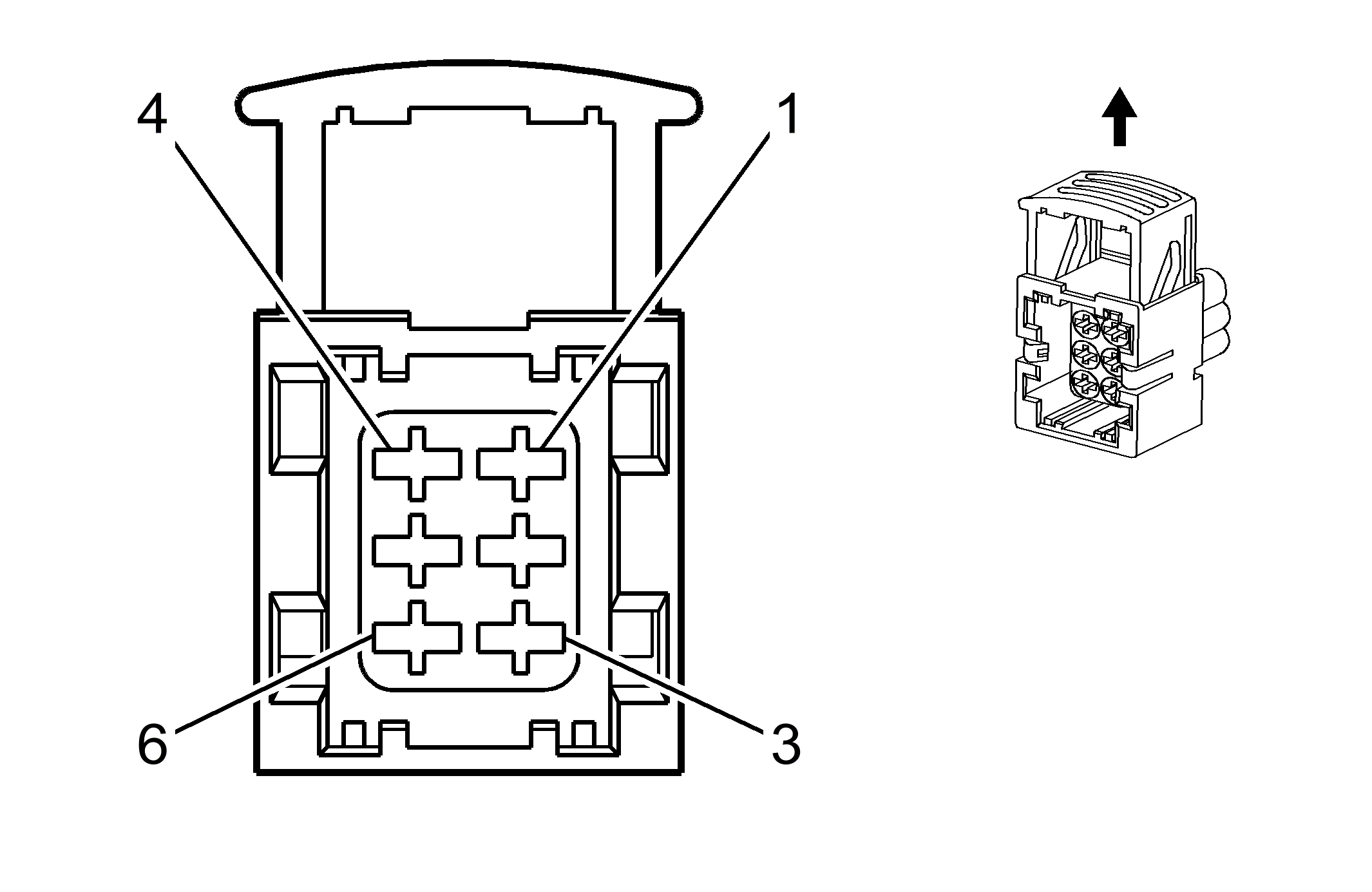

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 2-1355696-1
- Service Connector: 88988401
- Description: 6-Way F Timer Jr-Power Series, Sealed (GY)
|
Terminal Part Information
- Pins: 1, 4
- Terminated Lead: Pending
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964273-1/15
- Core/Insulation Crimp: C/5
- Pins: 6
- Terminated Lead: Pending
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
Window Motor - Driver (AXE)
| Pin |
Wire |
Circuit |
Function |
| 1 |
2 RD/WH |
3340 |
Battery Positive Voltage |
| 2-3 |
- |
- |
Not Used |
| 4 |
2 BK |
550 |
Ground |
| 5 |
- |
- |
Not Used |
| 6 |
0.35 BN |
6132 |
Linear Interconnect Network Bus |
