Tail Lamp - Right (W49)

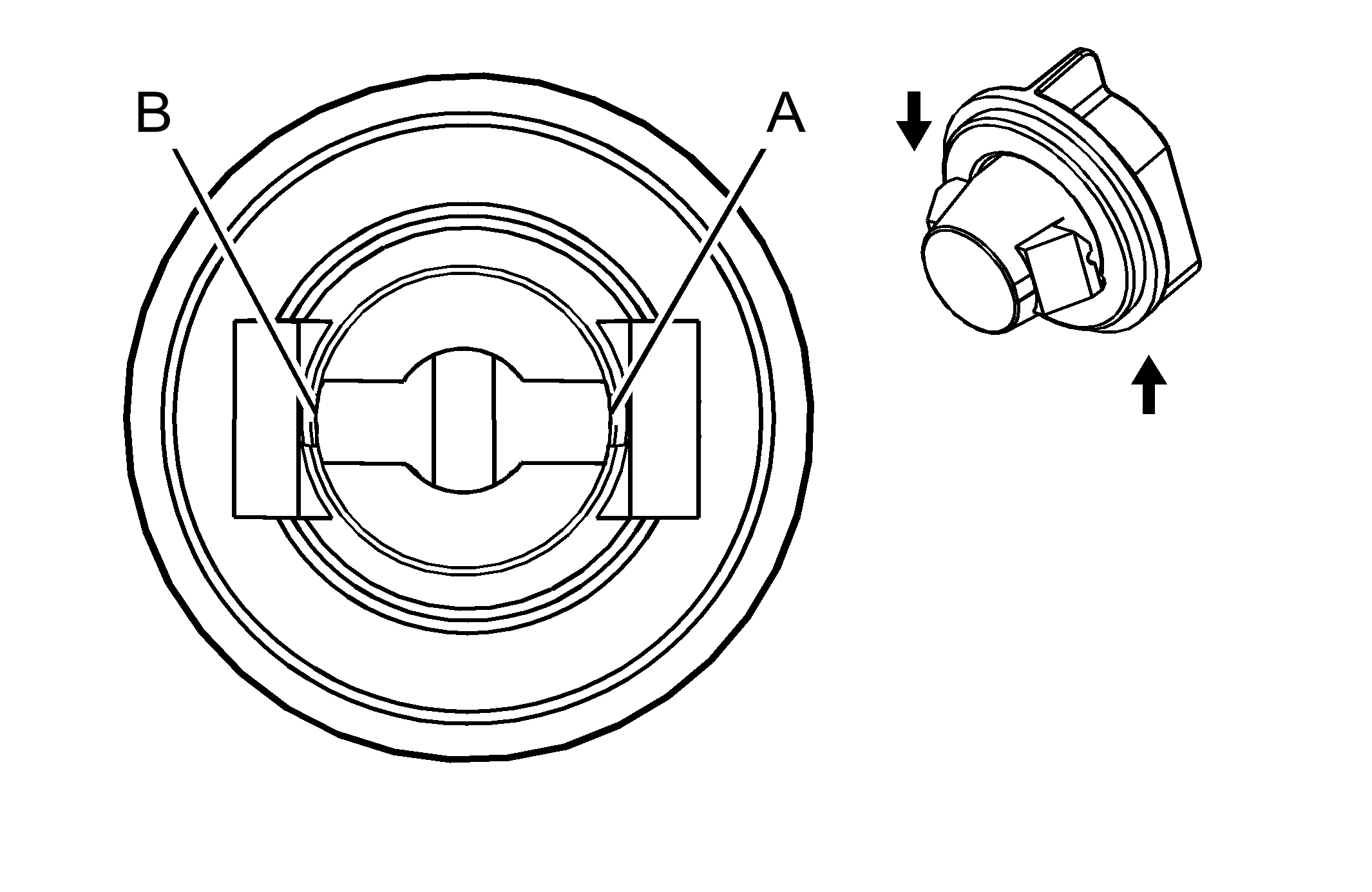

GM1914599Courtesy of
Connector Part Information
  • Harness Type: Right Tail Lamp
  • OEM Connector: 1011101
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F Lamp Socket, Axial (WH)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 1011101
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Tail Lamp - Right (W49)

Pin Wire Circuit Function
A 0.5 BK - Ground
0.5 BK - Ground
B 0.5 BN - Park Lamp Voltage
