Park Brake Switch

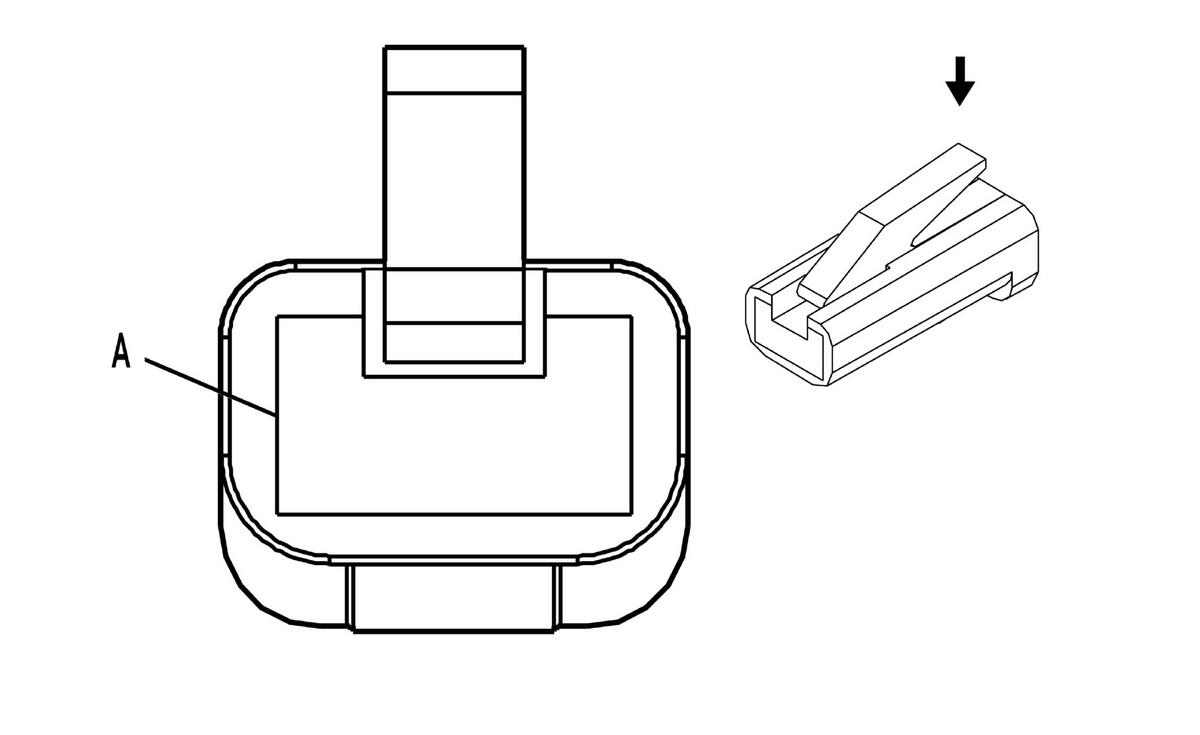

GM35348Courtesy of
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 12004267
  • Service Connector: 12102561
  • Description: 1-Way F 56 Series Lock Type (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 12124515/1
  • Core/Insulation Crimp: C/D
Park Brake Switch

Pin Wire Circuit Function
A 0.5 OG/BK 233 Park Brake Switch Signal
