Memory Seat Module (MSM) X6 (A45)
 Courtesy of
|

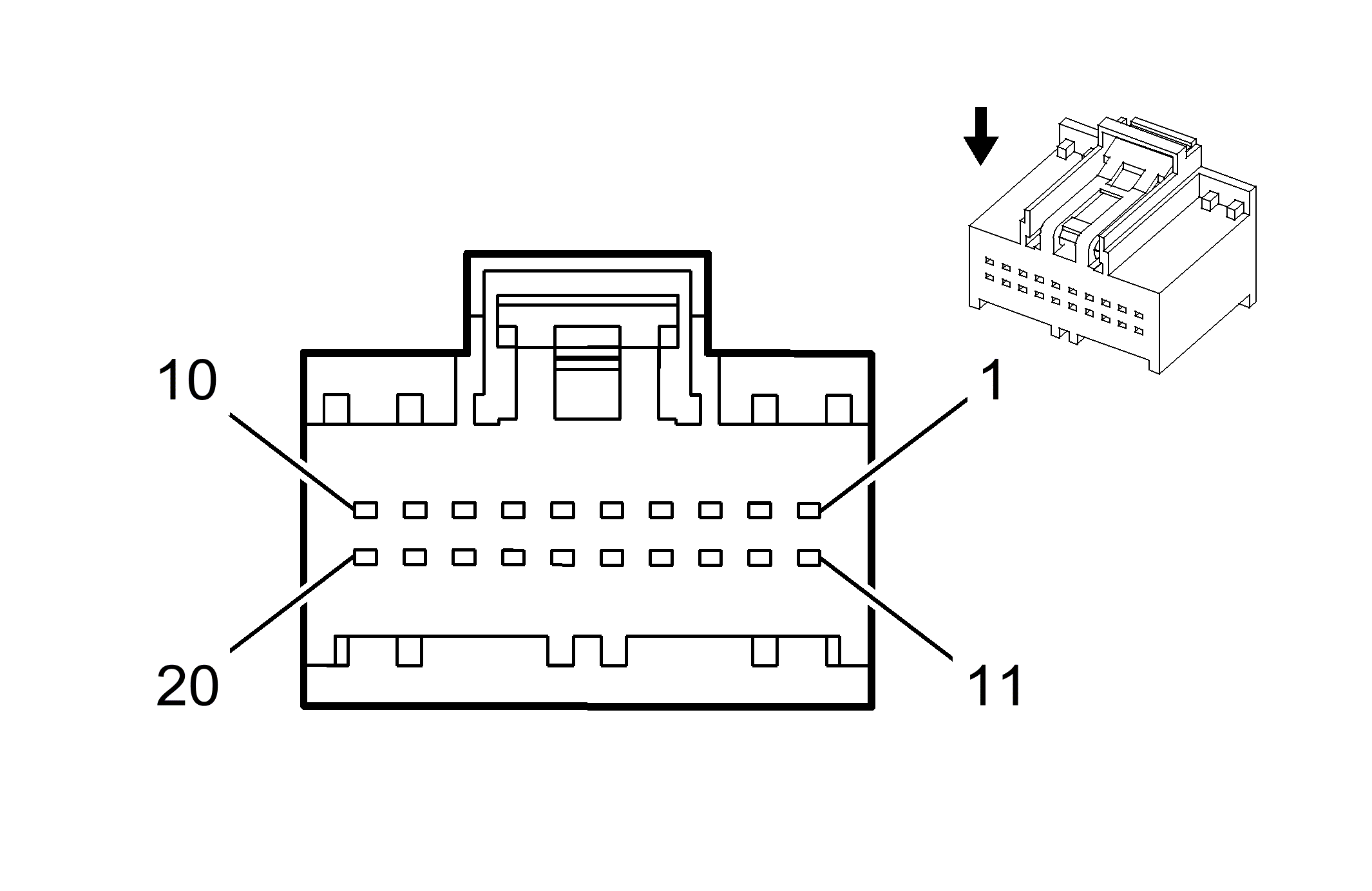

Connector Part Information
- Harness: Driver Seat
- OEM Connector: 7283-9111-40
- Service Connector: 13577797
- Description: 20-Way F USCAR 0.64 Series (GY)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
Memory Seat Module (MSM) X6 (A45)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 GY |
5961 |
Right Heated/Cooled Seat Mode Signal (KB6) |
| 3-7 |
- |
- |
Not Used |
| 8 |
0.35 GY |
2096 |
Steering Column Tilt and Telescope Up Switch Signal (N38) |
| 9 |
0.35 PK |
2094 |
Steering Column Tilt and Telescope Forward Switch Signal (N38) |
| 10 |
- |
- |
Not Used |
| 11 |
0.35 L-BU/WH |
181 |
Left Heated/Cooled Seat Mode Signal (KB6) |
| 12-17 |
- |
- |
Not Used |
| 18 |
0.35 YE |
2097 |
Steering Column Tilt and Telescope Down Switch Signal (N38) |
| 19 |
0.35 OG |
2095 |
Steering Column Tilt and Telescope Reverse Switch Signal (N38) |
| 20 |
- |
- |
Not Used |
