Removal Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Move the adjustable pedal assembly to the full forward, front of vehicle position prior to removing components. Failure to place the adjustable pedal assembly in the full forward position may result in incorrect accelerator and brake pedal step-over height and improper adjustable pedal function.

Move the adjustable pedal assembly to the full forward, front of vehicle position.
Remove the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement .

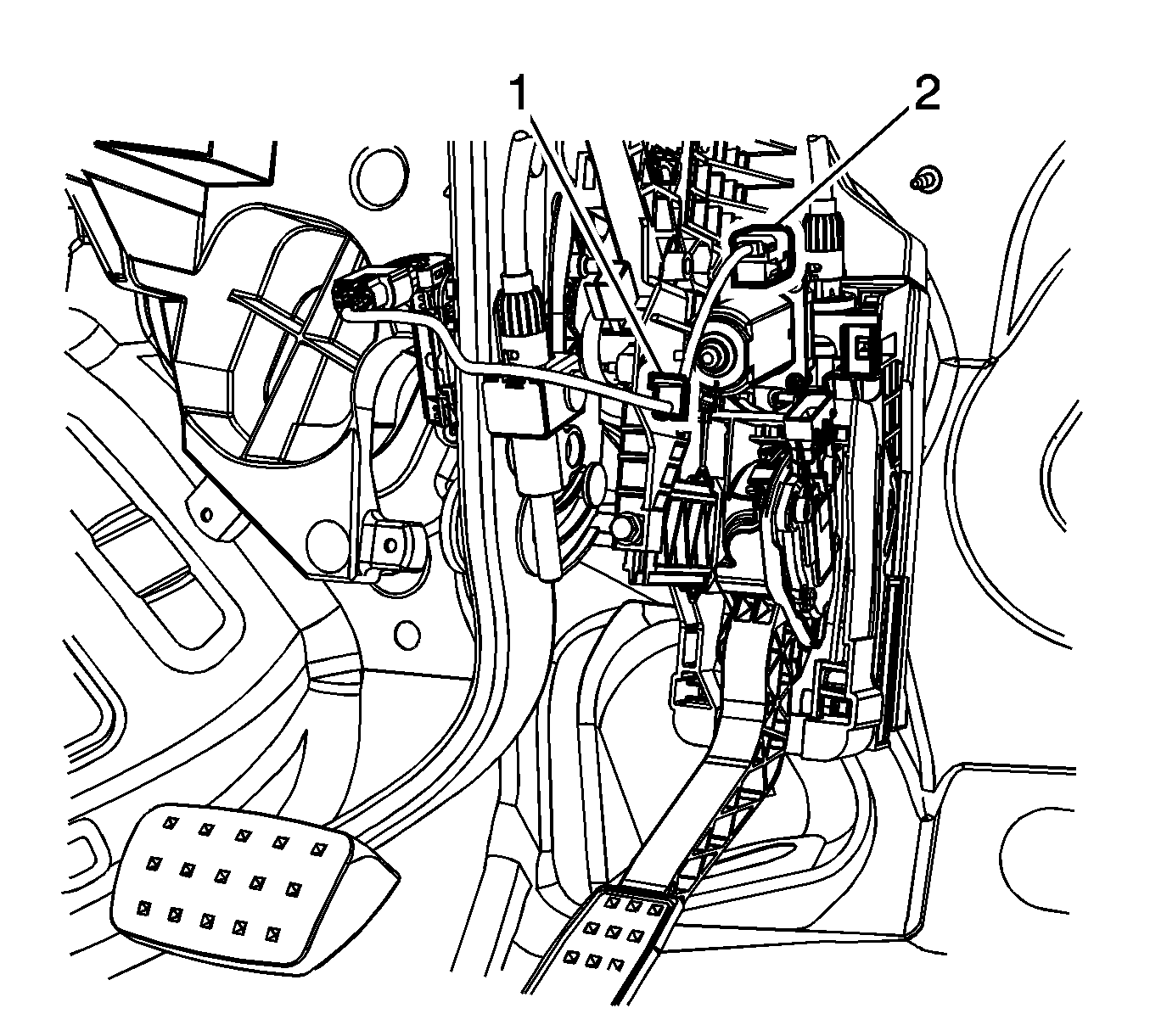

Fig 1: Identifying Brake Pedal Bracket Clip & Pedal Adjuster Position Sensor Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Release the brake and accelerator pedal adjuster position sensor harness from the brake pedal bracket clip (1).
Disconnect the brake and accelerator pedal adjuster position sensor harness electrical connector (2).

Fig 2: View Of Brake & Accelerator Pedal Position Sensor

Courtesy of GENERAL MOTORS CORP.

Release the locking tabs and remove the brake and accelerator pedal position sensor (1) from the bracket on the brake pedal arm.
