Power, Ground and Serial Data (UGN/UVZ)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

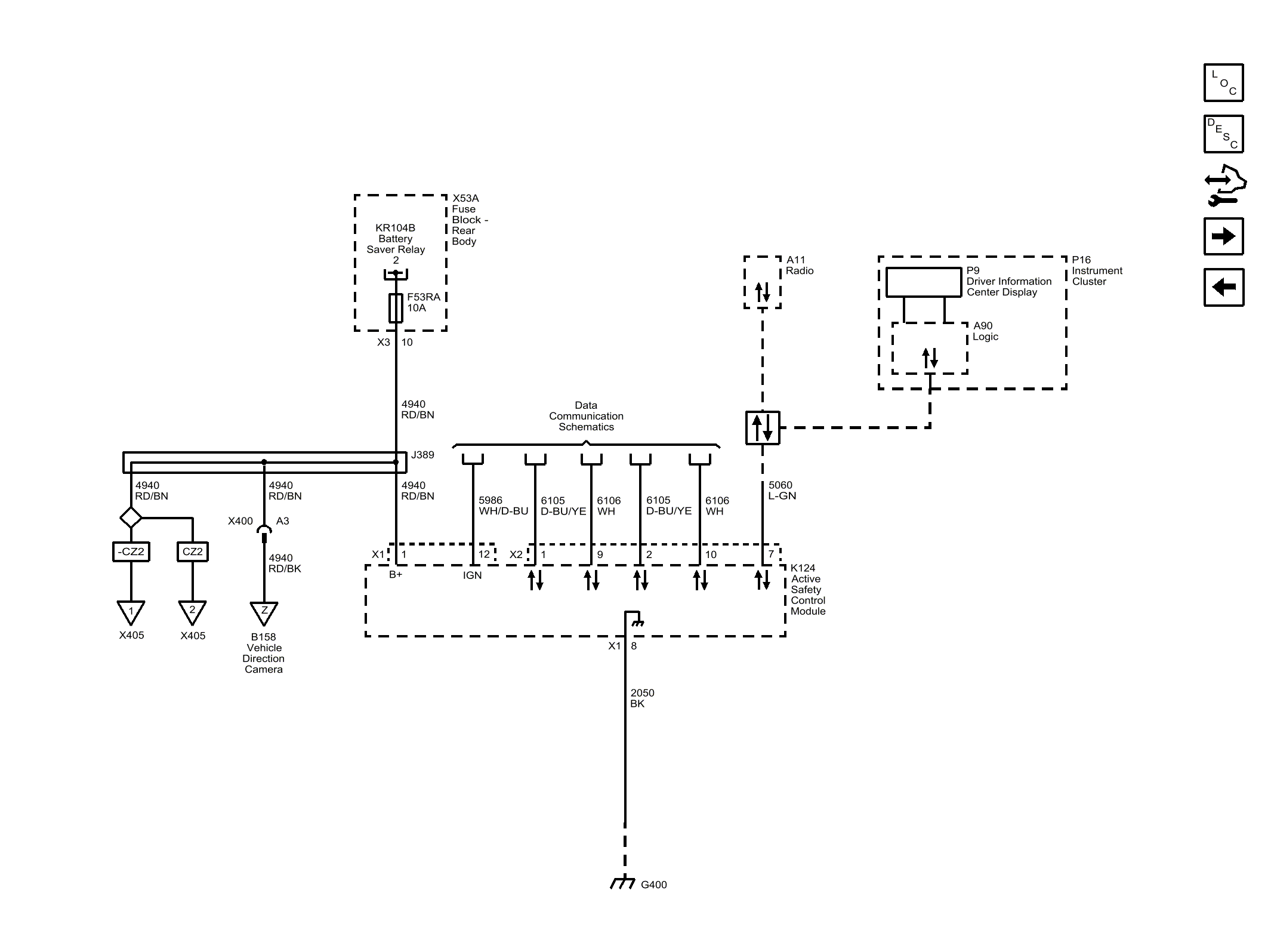

Fig 1: Power, Ground and Serial Data (UGN/UVZ)
GM3755231Courtesy of GENERAL MOTORS COMPANY
