Front Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

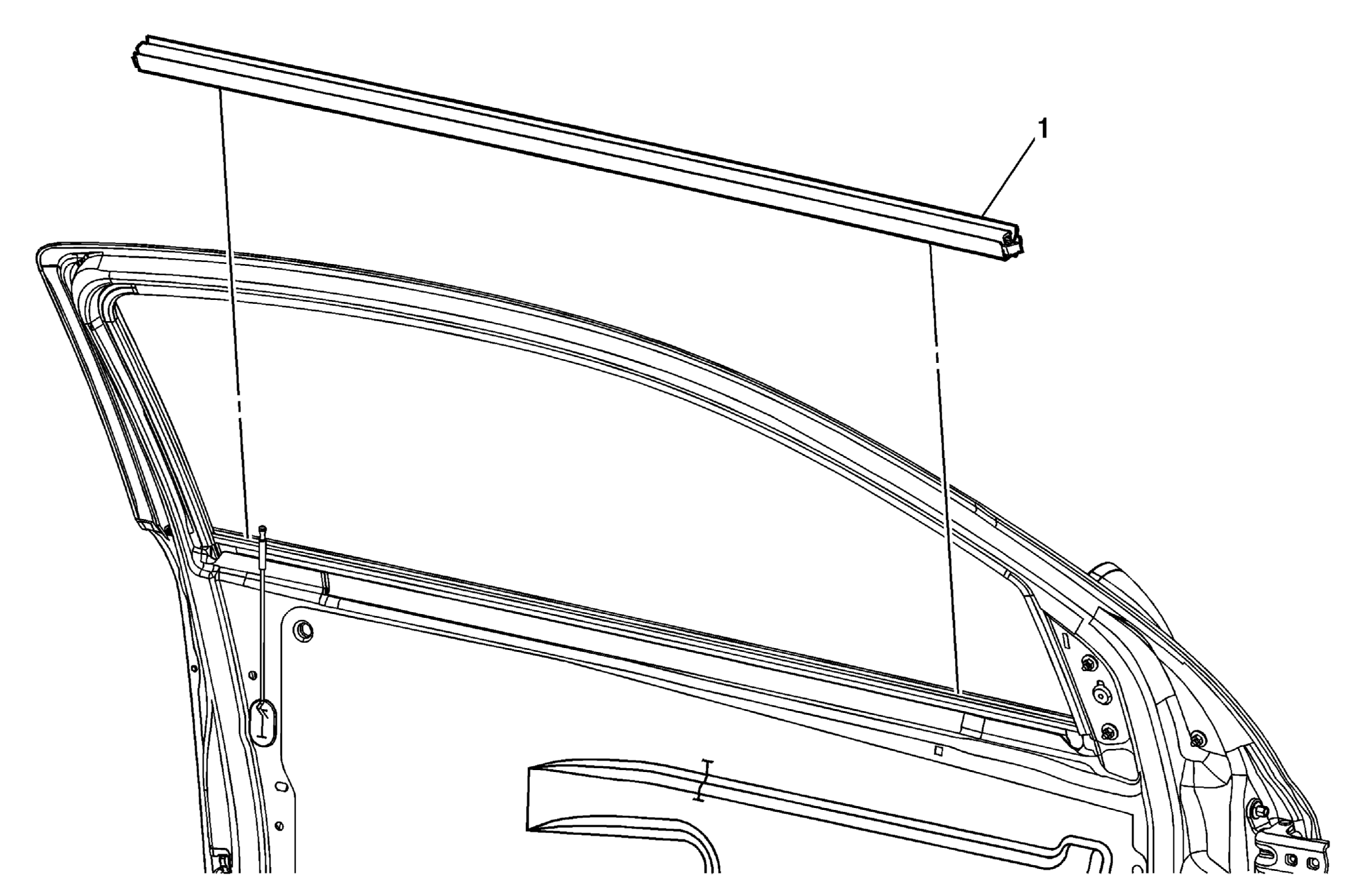

Fig 1: Identifying Front Door Window Belt Inner Sealing Strip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door trim panel. Refer to Front Side Door Trim Replacement
1	Front Side Door Window Inner Sealing Strip Procedure Lift the front door window inner belt sealing strip off the pinch-weld flange. Position the window belt inner sealing strip to the door flange. Ensure the front end of the window inner belt sealing strip is flush to the front door frame weatherstrip. Use hand pressure in order to firmly seat the front door window inner belt sealing strip on the pinch-weld flange. Tip: Inspect the front door window for proper operation before installing the trim panel.

Callout

Component Name

Preliminary Procedure:
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement

Front Side Door Window Inner Sealing Strip

Procedure

Lift the front door window inner belt sealing strip off the pinch-weld flange.
Position the window belt inner sealing strip to the door flange.
- Ensure the front end of the window inner belt sealing strip is flush to the front door frame weatherstrip.
- Use hand pressure in order to firmly seat the front door window inner belt sealing strip on the pinch-weld flange.

Tip: Inspect the front door window for proper operation before installing the trim panel.
