M17 Liftgate Motor Assembly
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
|
|

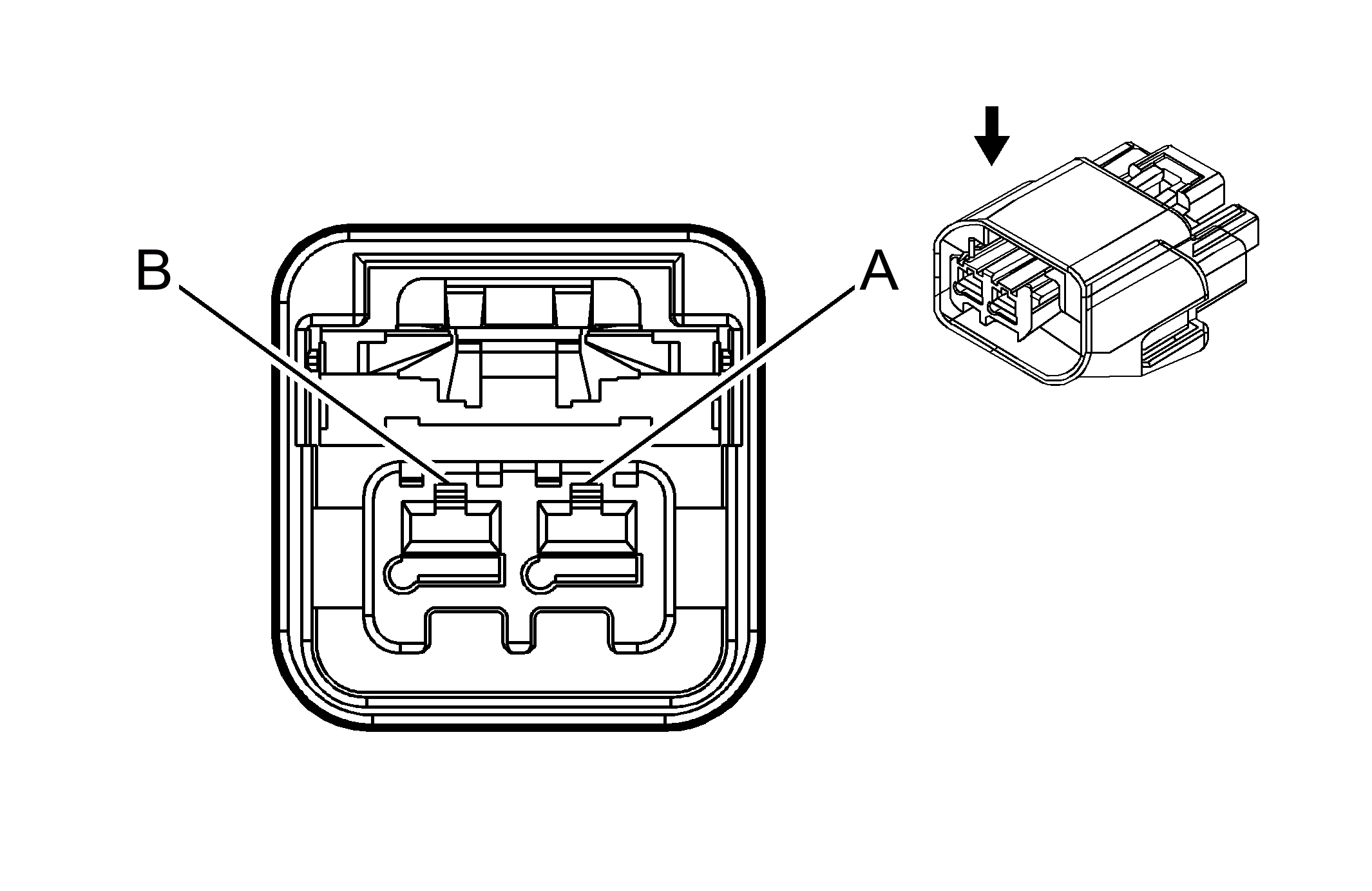

Connector Part Information
- Harness Type: Body
- OEM Connector: 13665544
- Service Connector: 13587136
- Description: 2-Way F 280 GT FBT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2.5 |
WH |
5798 |
Lift Gate Open/Close Motor Open Control |
I |
- |
| B |
2.5 |
BN/WH |
5799 |
Lift Gate Open/Close Motor Close Control |
I |
- |
