Quarter Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

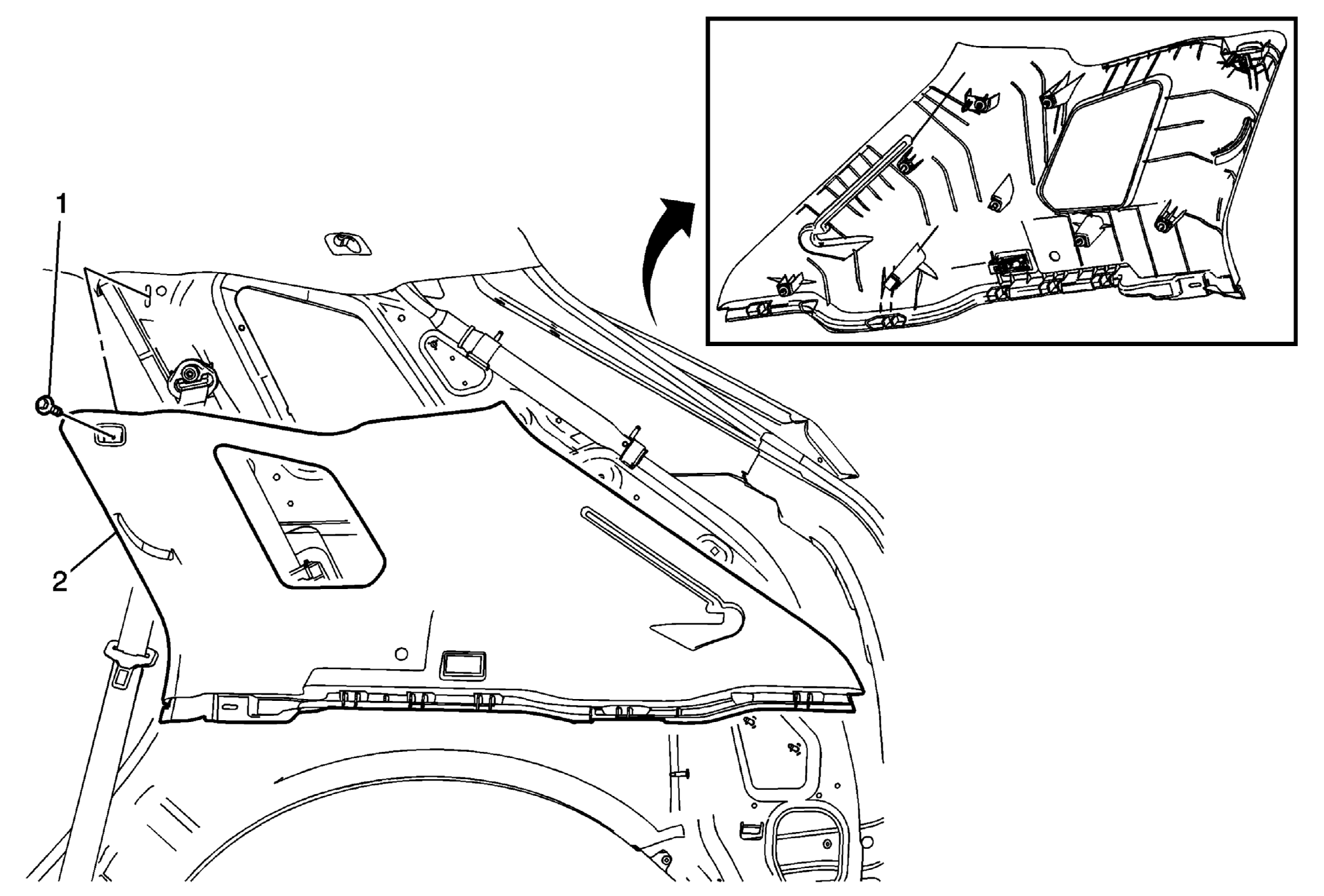

Fig 1: View Of Quarter Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the body side trim panel. Refer to Body Side Trim Panel Replacement . Remove the rear seat lower anchor plate bolt on the side of the trim panel being replaced. Refer to Rear Seat Retractor Side Belt Replacement .
1	Quarter Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Quarter Upper Trim Panel Assembly Procedure Loosen the rear compartment opening weather-strip. Route the seat belt through trim panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the body side trim panel. Refer to Body Side Trim Panel Replacement .
Remove the rear seat lower anchor plate bolt on the side of the trim panel being replaced. Refer to Rear Seat Retractor Side Belt Replacement .

Quarter Upper Trim Panel Fastener

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in)

Quarter Upper Trim Panel Assembly

Procedure

Loosen the rear compartment opening weather-strip.
Route the seat belt through trim panel.
Disconnect the electrical connector.
