Section 146 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic and Routing Diagrams
>>
Radio/Navigation System Schematics
>>
Speakers (UQF With ULD)
Speakers (UQF With ULD)
WARNING:
This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

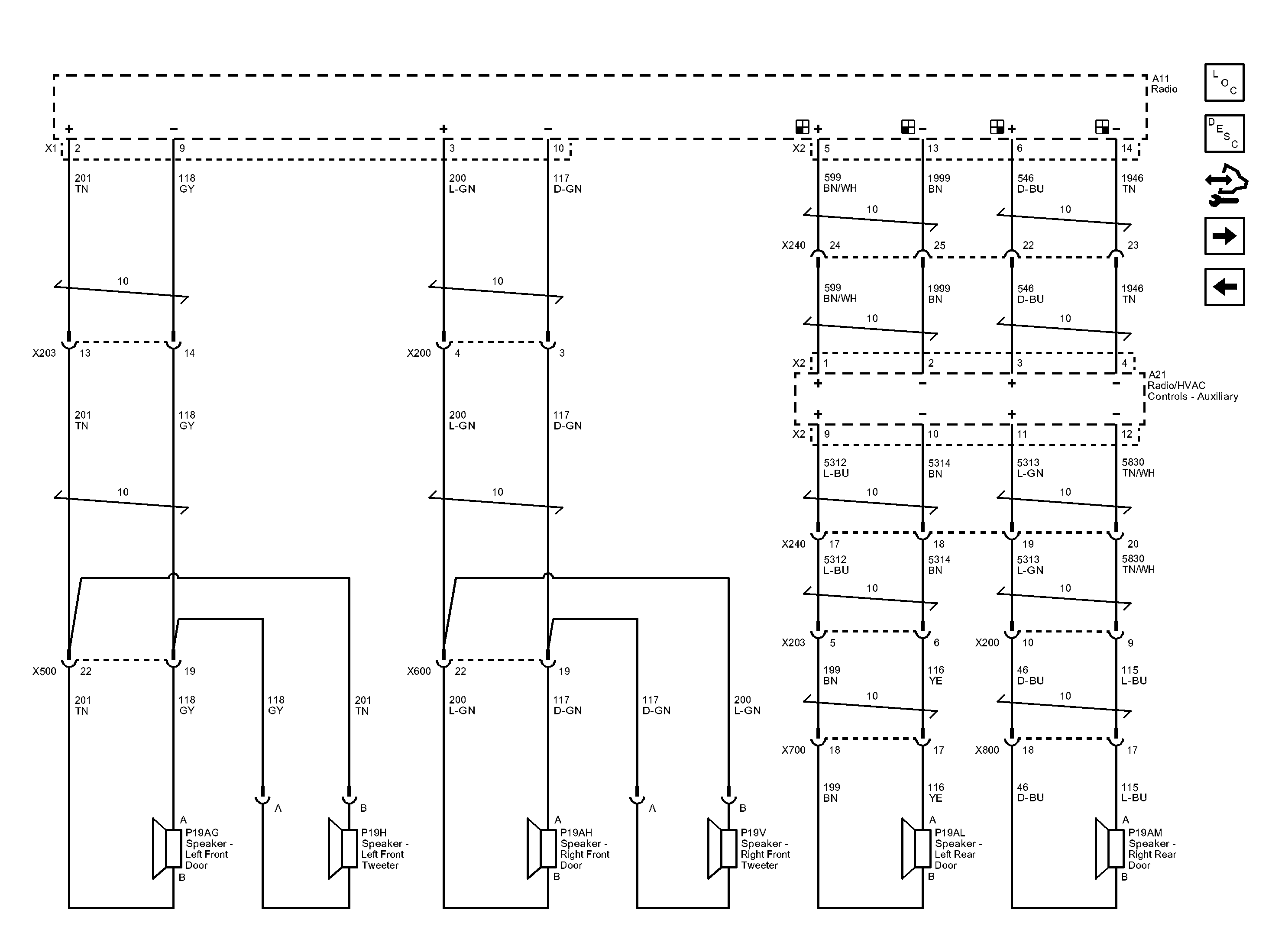

Fig 1: Speakers (UQF With ULD) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
