Remote Control Door Lock Receiver (RCDLR)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: IL-AG5-4S-S3C1
- Service Connector: 13585474
- Description: 4-Way F ILAG5 Series (GN)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-211
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: IL-AG5-C1-5000/20
- Core/Insulation Crimp: K/K
|

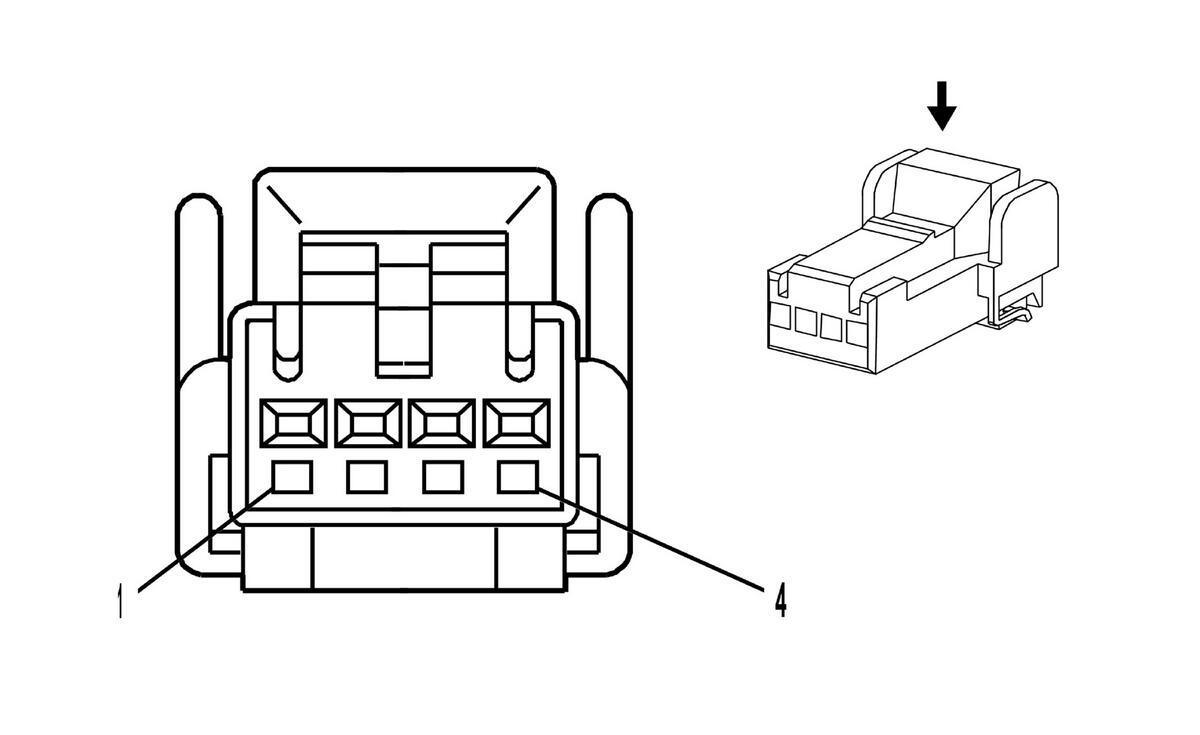

Remote Control Door Lock Receiver (RCDLR)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 RD/WH |
1840 |
Battery Positive Voltage |
| 2 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 BK |
650 |
Ground |
