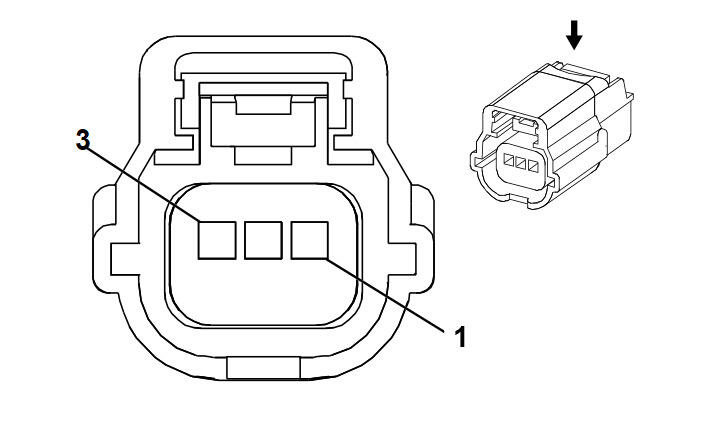

Object Alarm Sensor - Left Rear Middle (UD7)
 Courtesy of
|
Connector Part Information
- Harness Type: Rear Bumper
- OEM Connector: 31404-3700
- Service Connector: 88988337
- Description: 3-Way F 64 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
Object Alarm Sensor - Left Rear Middle (UD7)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU |
2374 |
Object Sensor Voltage |
| 2 |
0.35 GY |
2379 |
Low Reference |
| 3 |
0.35 OG |
2376 |
Left Rear Middle Object Sensor Signal |
