Mode Actuator

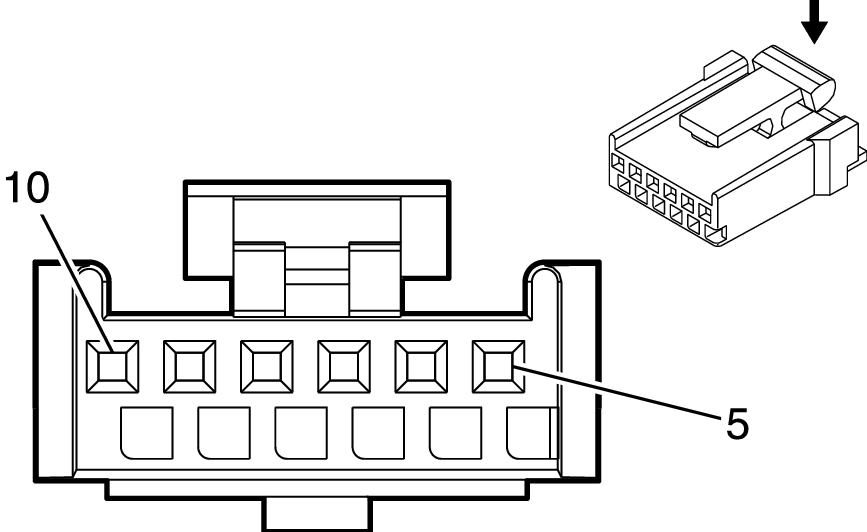

GM280764Courtesy of
Connector Part Information
  • Harness Type: HVAC
  • OEM Connector: 12064993
  • Service Connector: 12102485
  • Description: 6-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-13A
  • Diagnostic Test Probe: J-35616-6 (BN)
  • Terminal/Tray: 12146447/3
  • Core/Insulation Crimp: E/C
Mode Actuator

Pin Wire Circuit Function
5 0.35 TN 2273 Mode Door Control
6 0.35 WH 119 Mode Door Control
7 - - Not Used
8 0.35 YE 1791 Low Reference
9 0.35 L-GN 2275 Mode Door Position Signal
10 0.35 GY 598 5-Volt Reference
