Liftgate Control Switch - Interior (TB5)

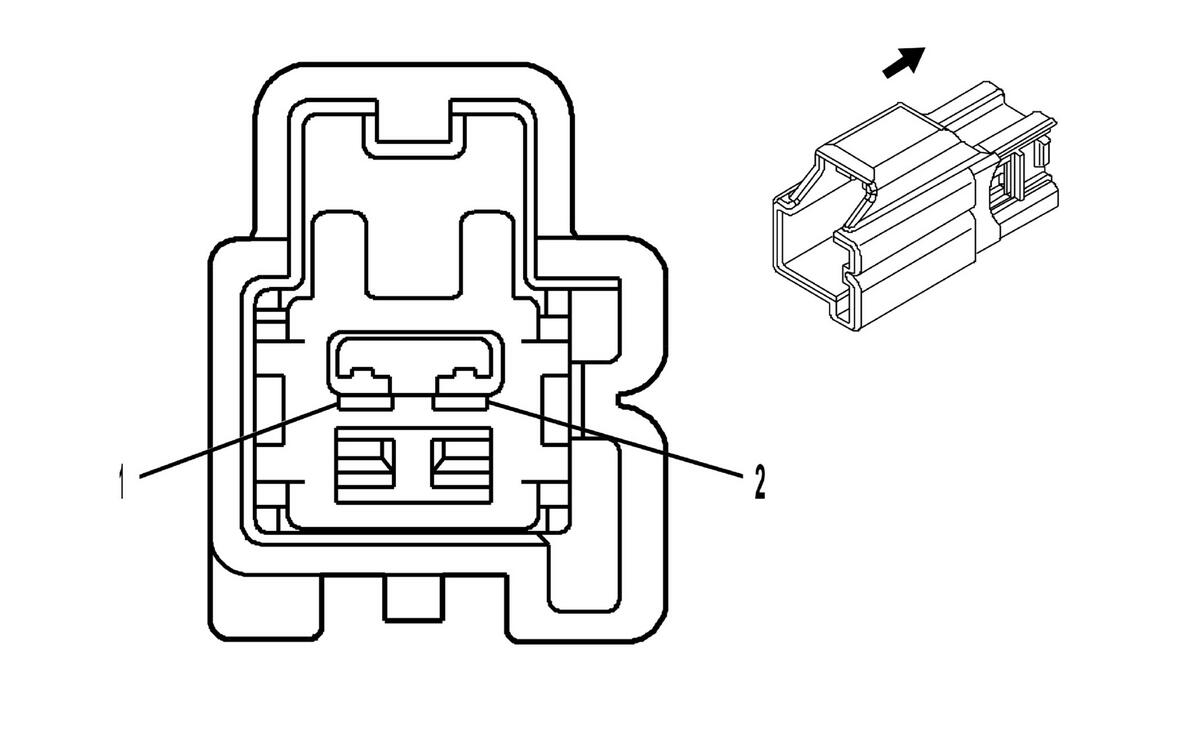

GM1853532Courtesy of
Connector Part Information
  • Harness Type: Liftgate
  • OEM Connector: 7282-6443-40
  • Service Connector: 88988503
  • Description: 2-Way M 1.5 Series (L-GY)
Terminal Part Information
  • Terminated Lead: 13575818
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 7114-4100-08/9
  • Core/Insulation Crimp: E/C
Liftgate Control Switch - Interior (TB5)

Pin Wire Circuit Function
1 0.35 GY/BK 6113 Rear Liftgate Open/Close Switch Signal
2 0.35 PU/WH 5801 Low Reference
