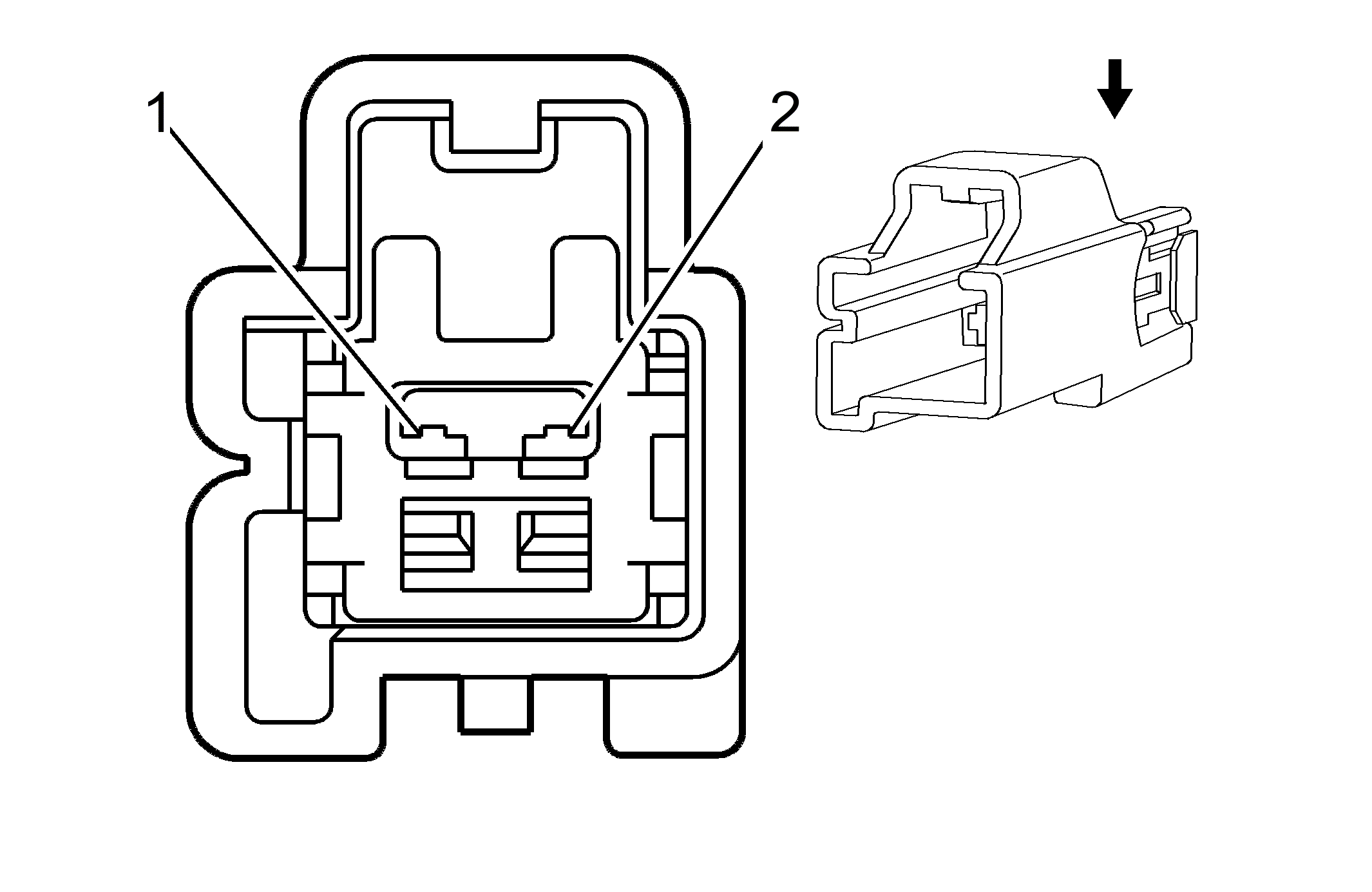

Liftgate Control Switch - Exterior
 Courtesy of
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 7282-6444-60
- Service Connector: 19167746
- Description: 2-Way M 1.5 Series (GN)
|
Terminal Part Information
- Terminated Lead: 13575818
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 7114-4100-08/9
- Core/Insulation Crimp: E/C
|
Liftgate Control Switch - Exterior
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
5797 |
Rear Closure Handle Switch Open Signal (TB4) |
| 0.35 GY/BK |
6113 |
Rear Liftgate Open/Close Switch Signal (TB5) |
| 2 |
0.35 BK |
650 |
Ground (TB4) |
| 0.35 PU/WH |
5801 |
Low Reference (TB5) |
