Inflatable Restraint Steering Wheel Module X2
 Courtesy of
|
Connector Part Information
- Harness Type: Inflatable Restraints Steering Wheel Module Coil
- OEM Connector: 54560222
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F FFB90-4 Type G (PU)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 54560222
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

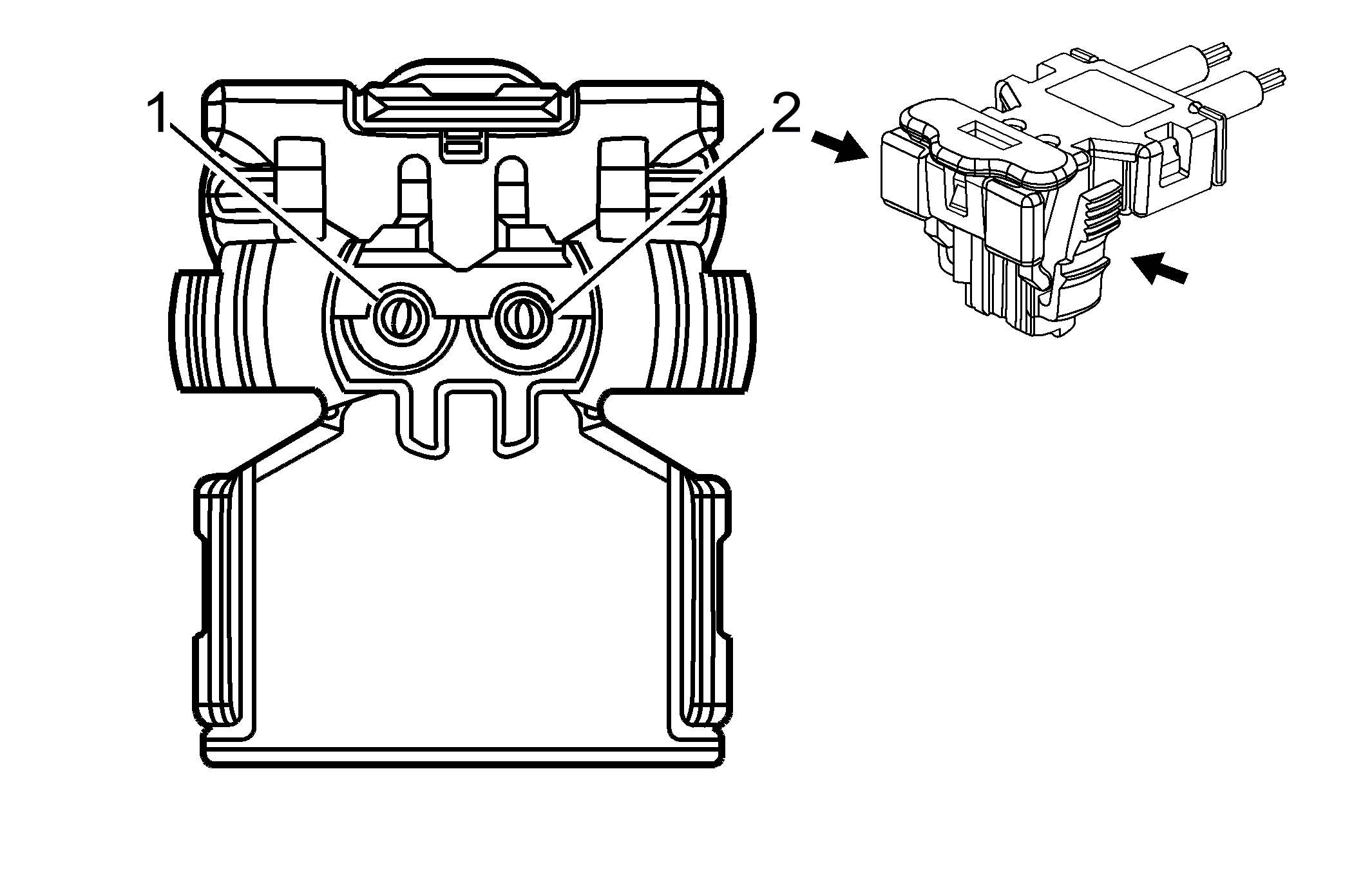

Inflatable Restraint Steering Wheel Module X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
3023 |
Steering Wheel Module- Stage 2- High Control |
| 2 |
0.35 PK |
3022 |
Steering Wheel Module- Stage 2- Low Control |
