Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
 Courtesy of
|
Connector Part Information
- Harness: Body
- OEM Connector: 2035023-2
- Service Connector: 13580845
- Description: 54-Way F 0.64 Series, Sealed (YE)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 776773-8
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

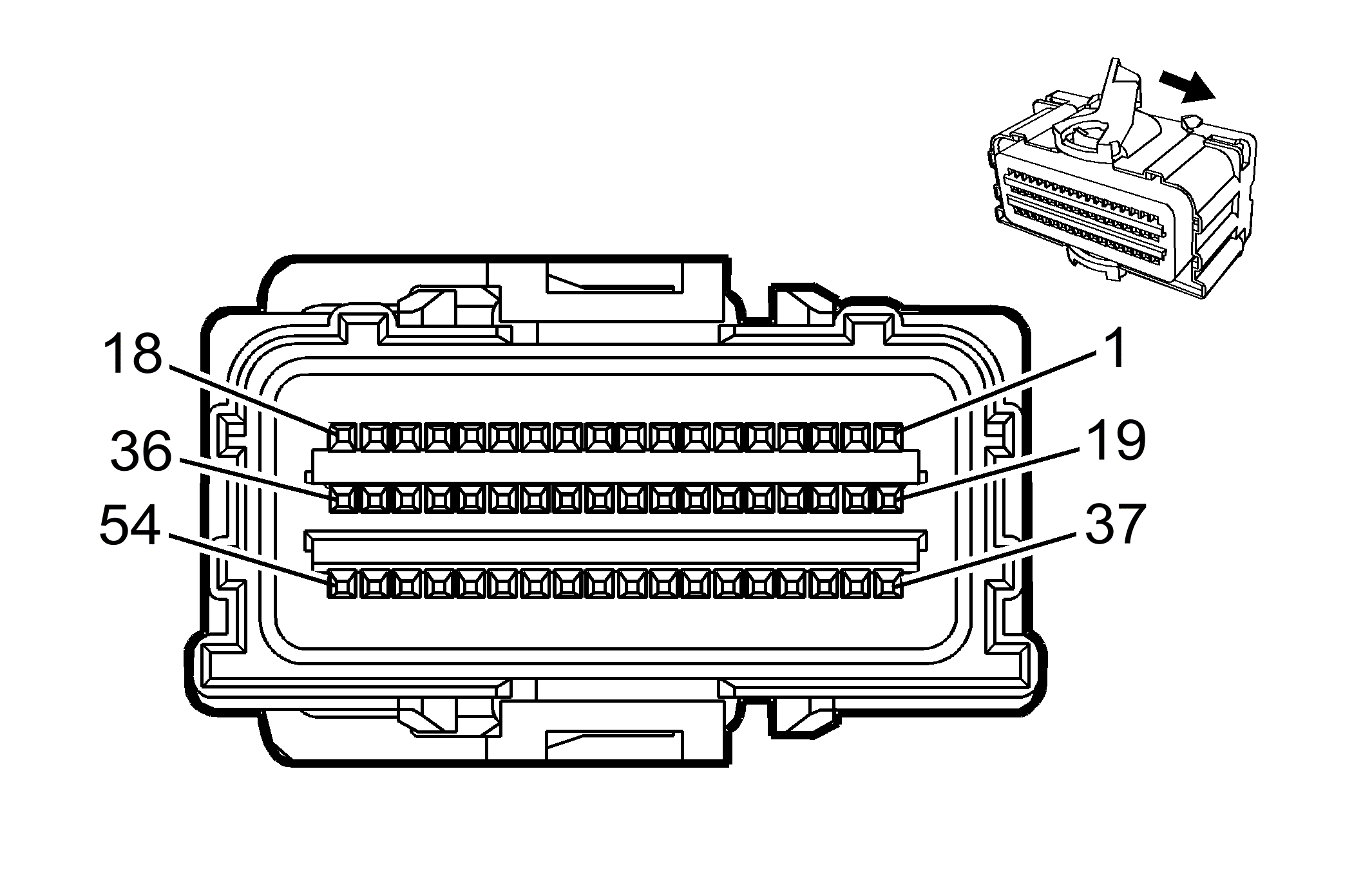

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
| Pin |
Wire |
Circuit |
Function |
| 1-8 |
- |
- |
Not Available |
| 9 |
0.5 WH |
3064 |
Seat Belt Buckle Pretensioner - Left - High Control |
| 10 |
0.5 YE/BK |
3065 |
Seat Belt Buckle Pretensioner - Left - Low Control |
| 11 |
0.5 L-BU/BK |
3063 |
Seat Belt Buckle Pretensioner - Right - Low Control |
| 12 |
0.5 TN |
3062 |
Seat Belt Buckle Pretensioner - Right - High Control |
| 13 |
0.5 BN |
2137 |
Side Impact Module - Left Front - High Control |
| 14 |
0.5 YE/BK |
2138 |
Side Impact Module - Left Front - Low Control |
| 15 |
0.5 L-GN |
2136 |
Side Impact Module - Right Front - Low Control |
| 16 |
0.5 TN/WH |
2135 |
Side Impact Module - Right Front - High Control |
| 17 |
0.35 PU/WH |
5019 |
Roof Rail Module - Left - High Control |
| 18 |
0.35 PK |
5020 |
Roof Rail Module - Left - Low Control |
| 19 |
0.35 WH |
2132 |
Side Impact Sensing Module - Left - Signal |
| 20 |
0.35 PU/WH |
6628 |
Low Reference |
| 21 |
0.35 L-GN/BK |
6623 |
Low Reference |
| 22 |
0.35 L-BU |
6622 |
Left Rear Side Impact Sensing Module Signal |
| 23 |
0.35 YE |
354 |
Discriminating Sensor - Left - Signal |
| 24 |
0.35 TN/OG |
5045 |
Low Reference |
| 25 |
0.35 GY |
5600 |
Low Reference |
| 26 |
0.35 D-GN |
1409 |
Discriminating Sensor - Right - Signal |
| 27 |
0.35 D-GN |
2134 |
Side Impact Sensing Module - Right - Signal |
| 28 |
0.35 WH/BK |
6629 |
Low Reference |
| 29 |
0.35 PK/BK |
6627 |
Low Reference |
| 30 |
0.35 L-BU/WH |
6626 |
Right Rear Side Impact Sensing Module Signal |
| 31-36 |
- |
- |
Not Available |
| 37 |
0.5 TN/WH |
2118 |
Seat Belt Retractor Pretensioner - Left - High Control |
| 38 |
0.5 OG/BK |
2119 |
Seat Belt Retractor Pretensioner - Left - Low Control |
| 39 |
0.5 OG |
2117 |
Seat Belt Retractor Pretensioner - Right - Low Control |
| 40 |
0.5 L-GN |
2116 |
Seat Belt Retractor Pretensioner - Right - High Control |
| 41 |
0.35 D-GN |
5016 |
Seat Belt Switch - Left - Signal |
| 42 |
- |
- |
Not Available |
| 43 |
0.35 PK |
5057 |
Low Reference |
| 44 |
0.35 L-BU |
1361 |
Low Reference |
| 45 |
0.35 OG |
1362 |
Seat Belt Switch - Right - Signal |
| 46-52 |
- |
- |
Not Available |
| 53 |
0.35 YE/BK |
5021 |
Roof Rail Module - Right - High Control |
| 54 |
0.35 WH/BK |
5022 |
Roof Rail Module - Right - Low Control |
