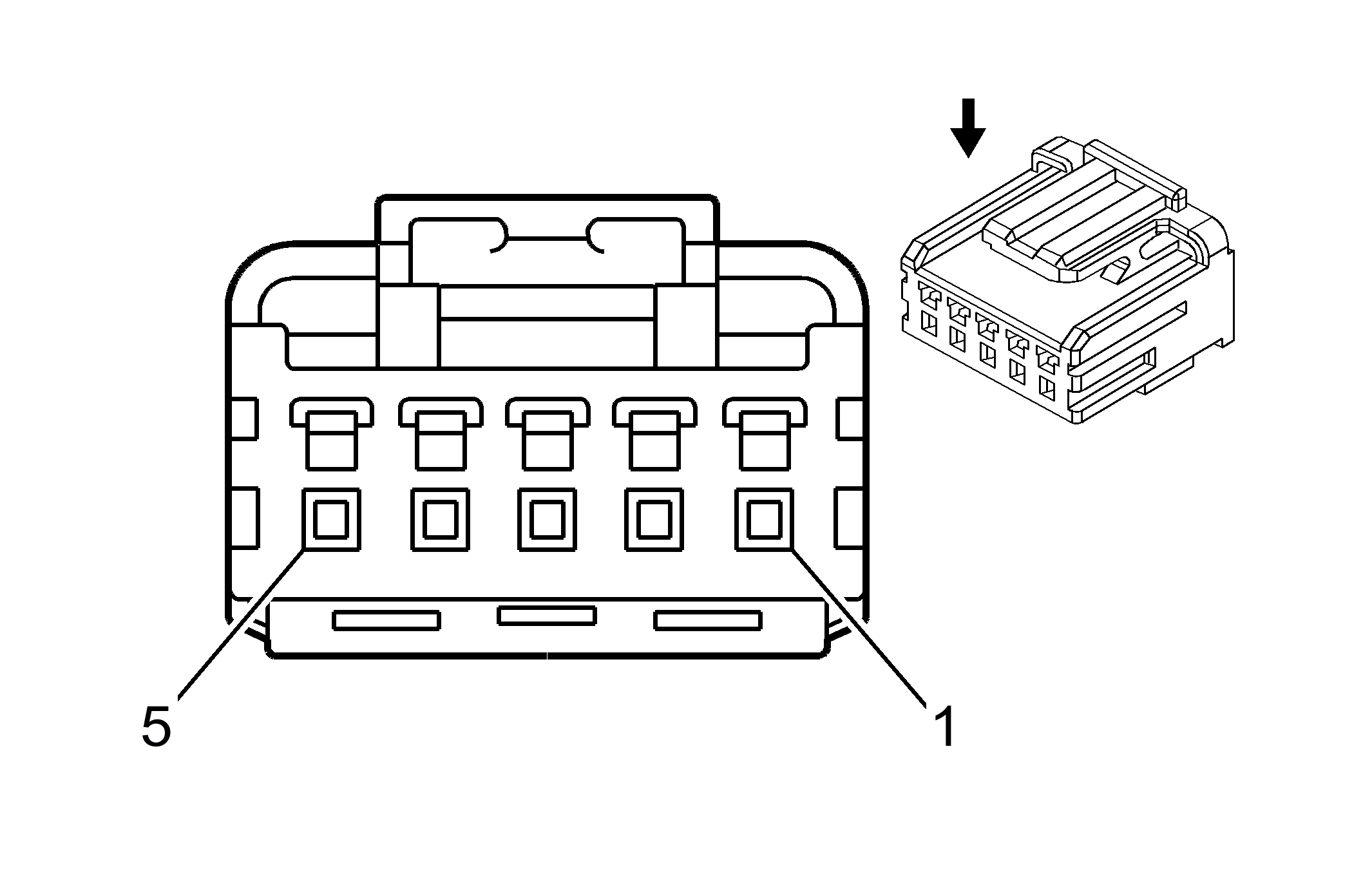

Inflatable Restraint I/P Module Indicator
 Courtesy of
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: HCMPB-05-S
- Service Connector: 88988112
- Description: 5-Way F HCM Series (NA)
|
Terminal Part Information
- Terminated Lead: 13575868
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SHCM-A03T-P025/20
- Core/Insulation Crimp: J/J
|
Inflatable Restraint I/P Module Indicator
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU |
2307 |
Passenger Air Bag On Indicator Control |
| 2 |
0.35 BK |
1450 |
Ground |
| 3 |
0.35 D-GN |
2308 |
Passenger Air Bag Off Indicator Control |
| 4 |
0.35 PK |
1139 |
Ignition Voltage |
| 5 |
0.35 PU |
5234 |
Passenger Seat Belt Indicator |
