Fuel Tank Pressure (FTP) Sensor
 Courtesy of
|

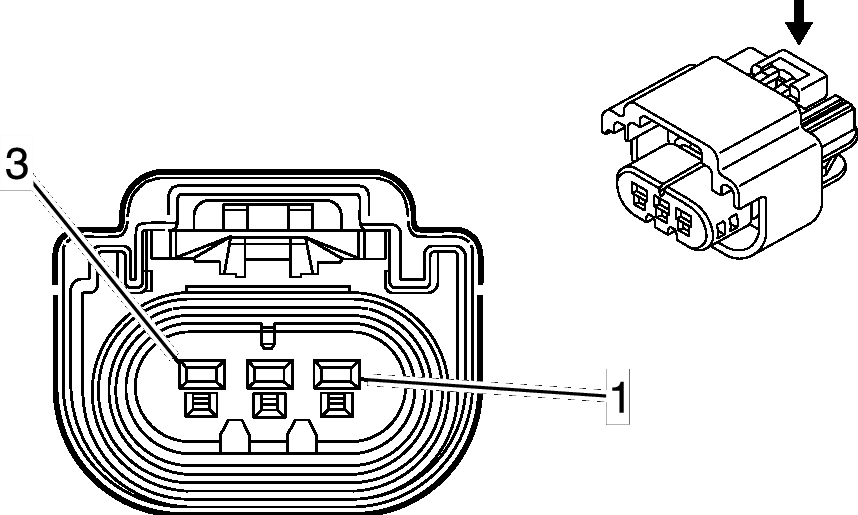

Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 13522407
- Service Connector: 19179274
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 19179274
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Fuel Tank Pressure (FTP) Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
890 |
Fuel Tank Pressure Sensor Signal |
| 2 |
0.35 TN |
2759 |
Low Reference |
| 3 |
0.35 GY |
2709 |
5-Volt Reference |
