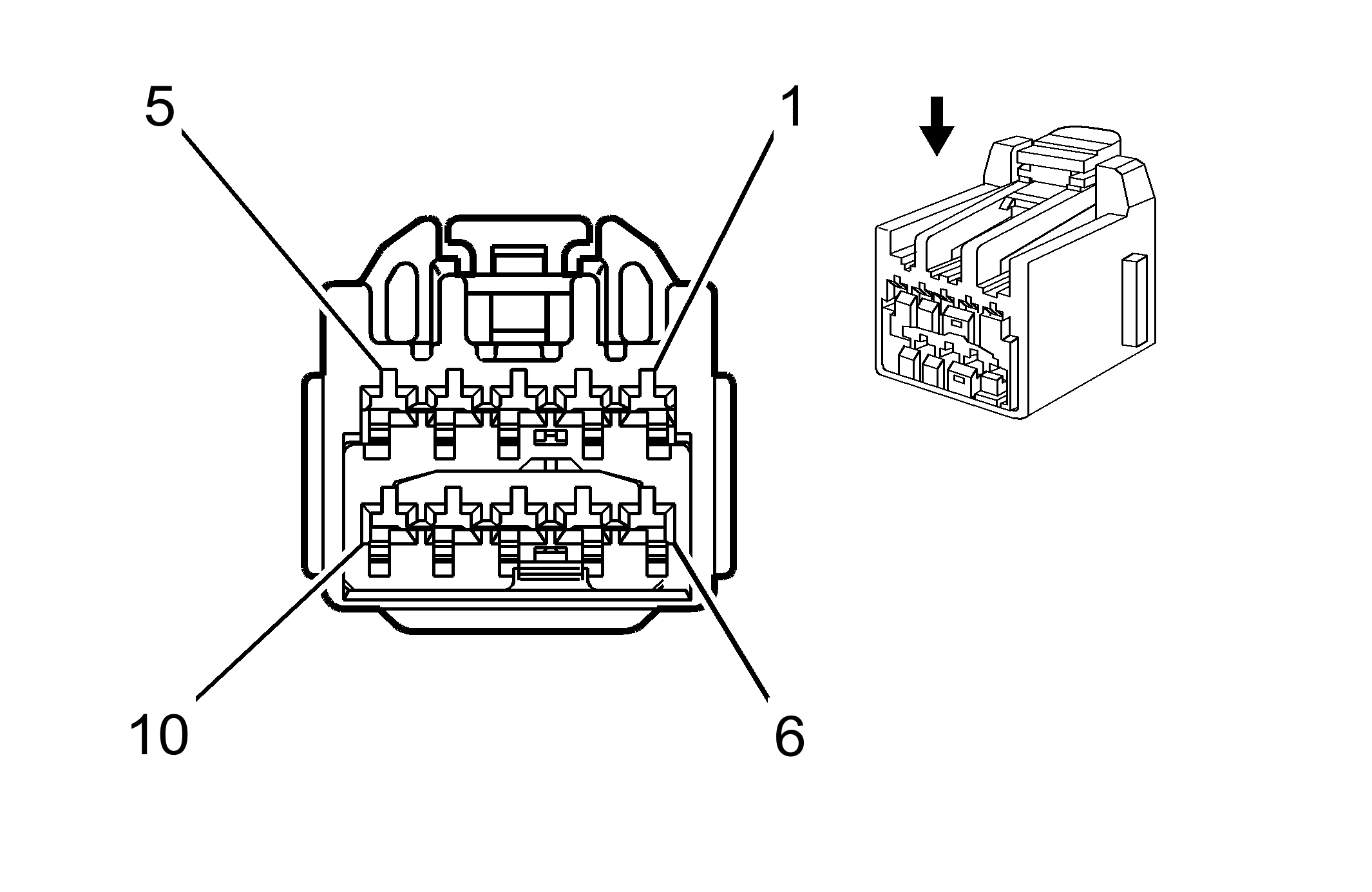

Sunroof Control Module (C3U)
 Courtesy of
|
Connector Part Information
- Harness Type: Sunroof
- OEM Connector: 7283-5909-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 1.5 Series (L-GY)
|
Terminal Part Information
- Pin: 1, 6
- Terminated Lead: 13575829
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4101-08/9
- Core/Insulation Crimp: E/A
- Pins: 3, 5, 7, 10
- Terminated Lead: 13578891
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4100-08/9
- Core/Insulation Crimp: E/C
|
Sunroof Control Module (C3U)
| Pin |
Wire |
Circuit |
Function |
| 1 |
1 BK |
850 |
Ground |
| 2 |
- |
- |
Not Used |
| 3 |
0.5 YE |
43 |
Ignition Voltage |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 BN |
100 |
Sunroof Switch Open Signal |
| 6 |
1 RD/WH |
3440 |
Battery Positive Voltage |
| 7 |
0.35 WH |
- |
Serial Communication |
| 8-9 |
- |
- |
Not Used |
| 10 |
0.35 OG |
110 |
Sunroof Switch Close Signal |
