Rear Seat Audio Controls, Lighting, Data Communication, and Infrared Module

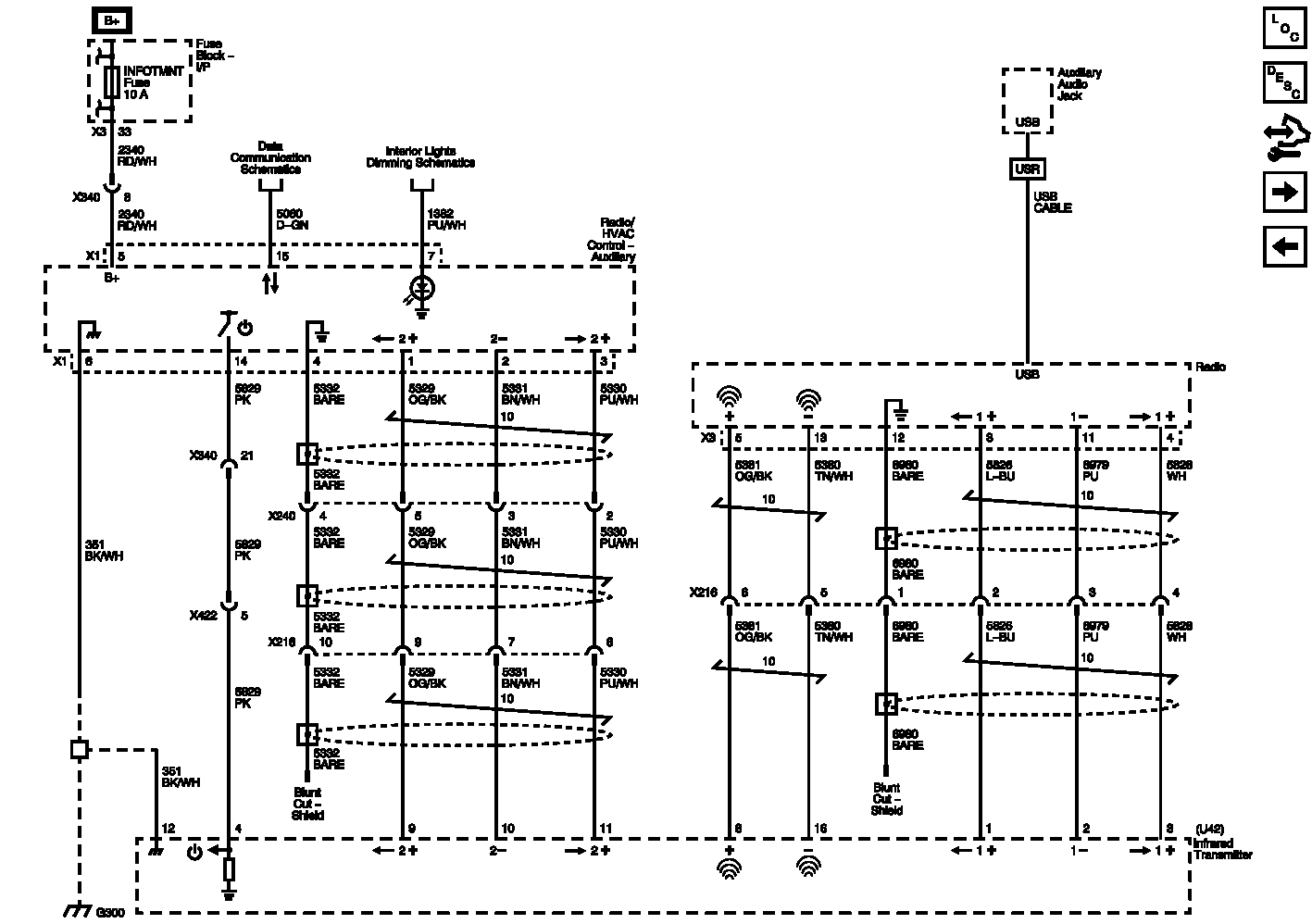

Fig 1: Rear Seat Audio Controls, Lighting, Data Communication, and Infrared Module Wiring Diagram
GM2566955Courtesy of GENERAL MOTORS COMPANY
