Power Steering Pump Pulley Replacement

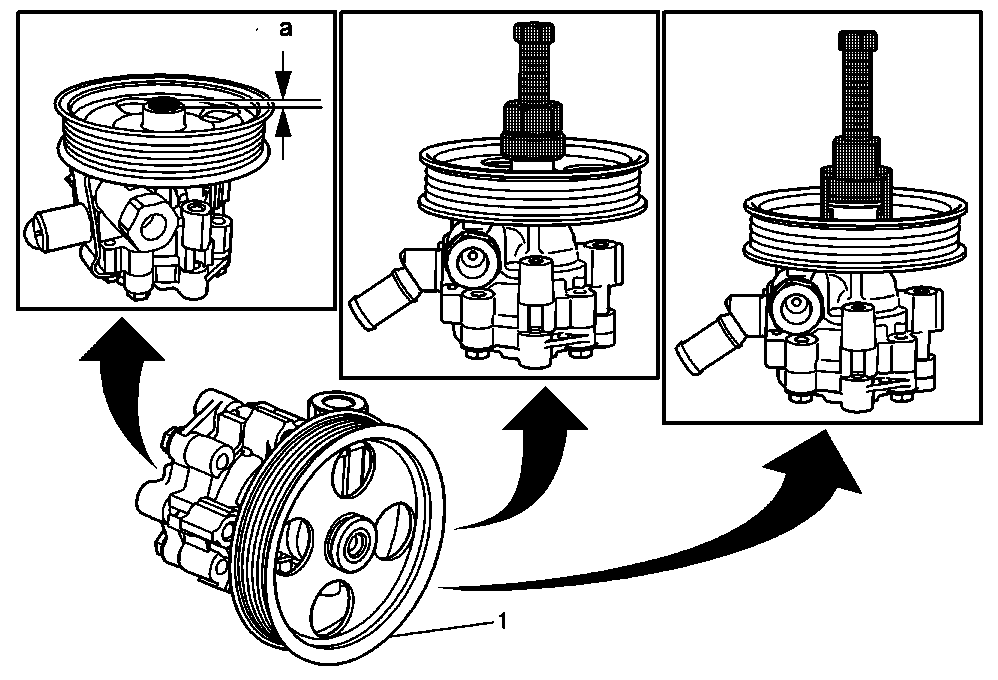

Fig 1: Power Steering Pump Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the power steering pump. Refer to Power Steering Pump Replacement (L4) .
1	Power Steering Pump Pulley Procedure Use the CH-25034-C: remover in order to remove the power steering pump pulley. Use the CH-25033-C: installer in order to install the power steering pump pulley. Ensure the axial tolerance (a) of the power steering pump pulley on the power steering pump shaft is within 0.25 mm (0.010 in). Special Tools CH-25033-C: Pulley Installer CH-25034-C: Pulley Remover For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the power steering pump. Refer to Power Steering Pump Replacement (L4) .

Power Steering Pump Pulley

Procedure

Use the CH-25034-C: remover in order to remove the power steering pump pulley.
Use the CH-25033-C: installer in order to install the power steering pump pulley.
Ensure the axial tolerance (a) of the power steering pump pulley on the power steering pump shaft is within 0.25 mm (0.010 in).

Special Tools

For equivalent regional tools, refer to Special Tools .
