Ground Distribution Connector Locations: G404

G404

Component Name	Callout
K46 Radio Antenna Module	1
G404	2
T4M Radio Antenna	3
E18 Rear Defogger Grid	4
E18 Rear Defogger Grid X2	5
T4M Radio Antenna Module X1	6
T4M Radio Antenna Module X2	7

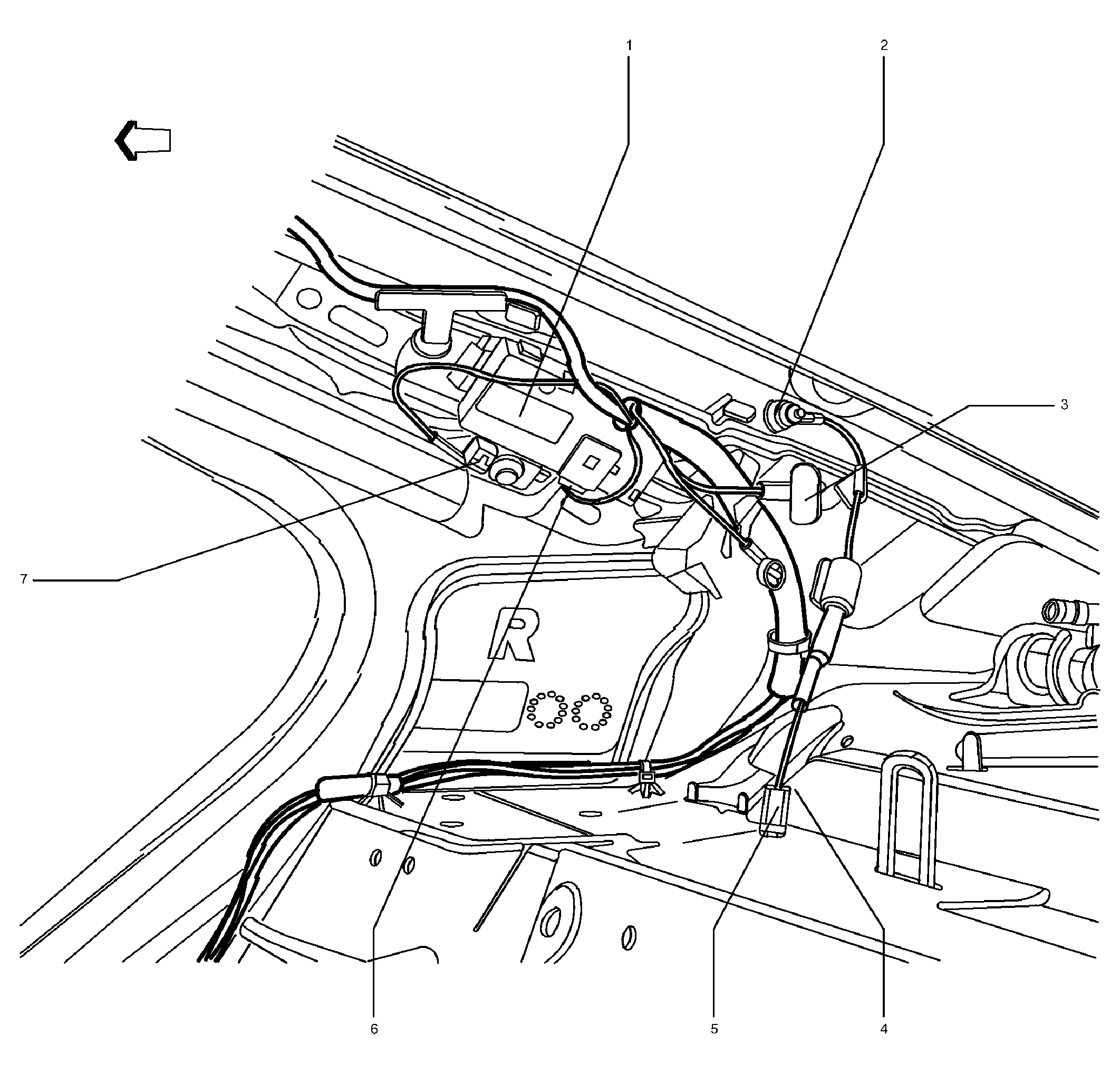

Fig 1: G404

Courtesy of GENERAL MOTORS CORP.
