Driver Information System Schematics

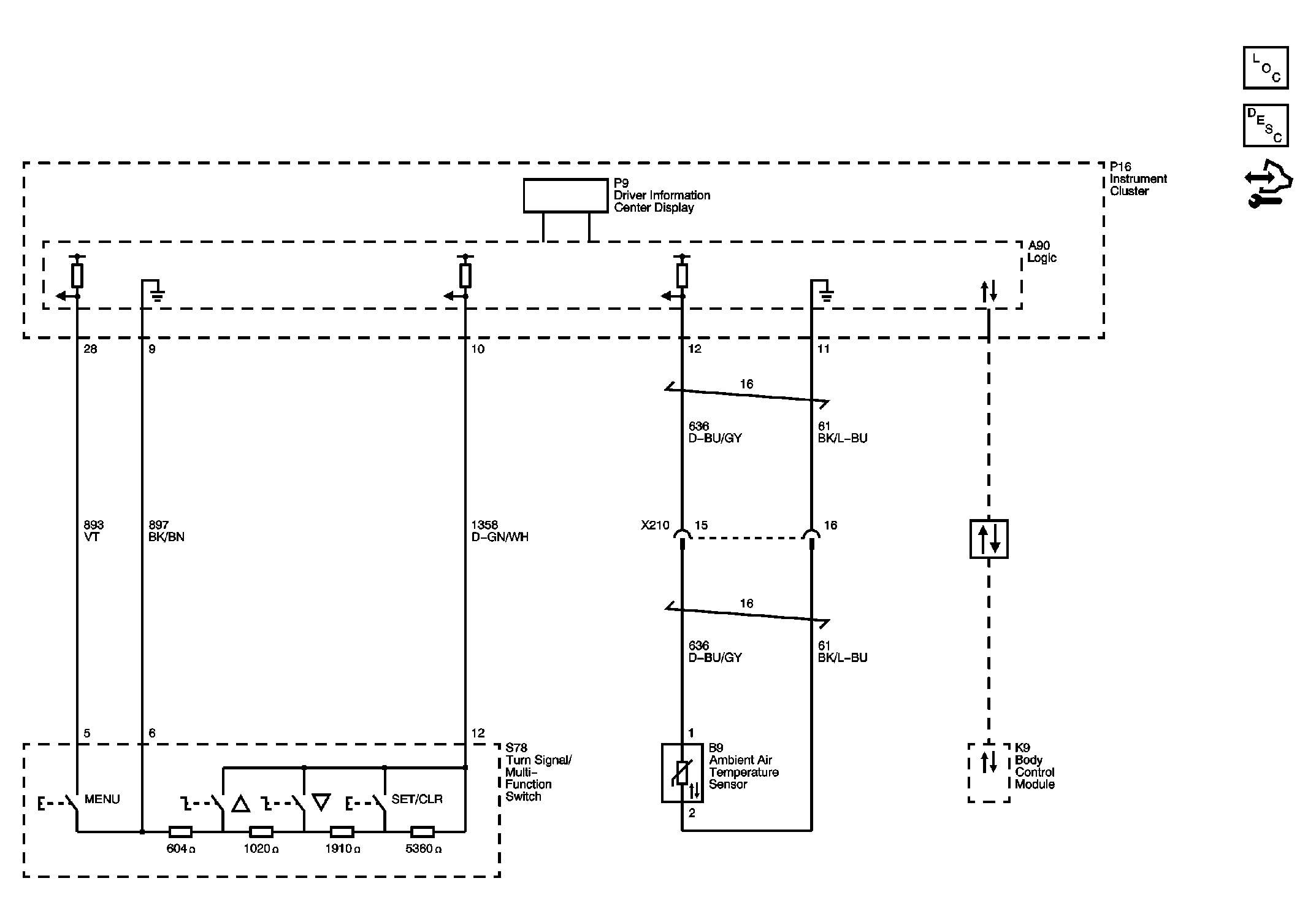

Fig 1: Driver Information Wiring Schematic

GM2375517

Courtesy of GENERAL MOTORS CORP.
