Center Console Component Locations

Center Console Component Locations

Component Name Callout
T10J Keyless Entry Antenna - Center Console Front 1
X80A Accessory Power Outlet - Center Console 1 2
T1 Accessory DC/AC Power Inverter Module 3

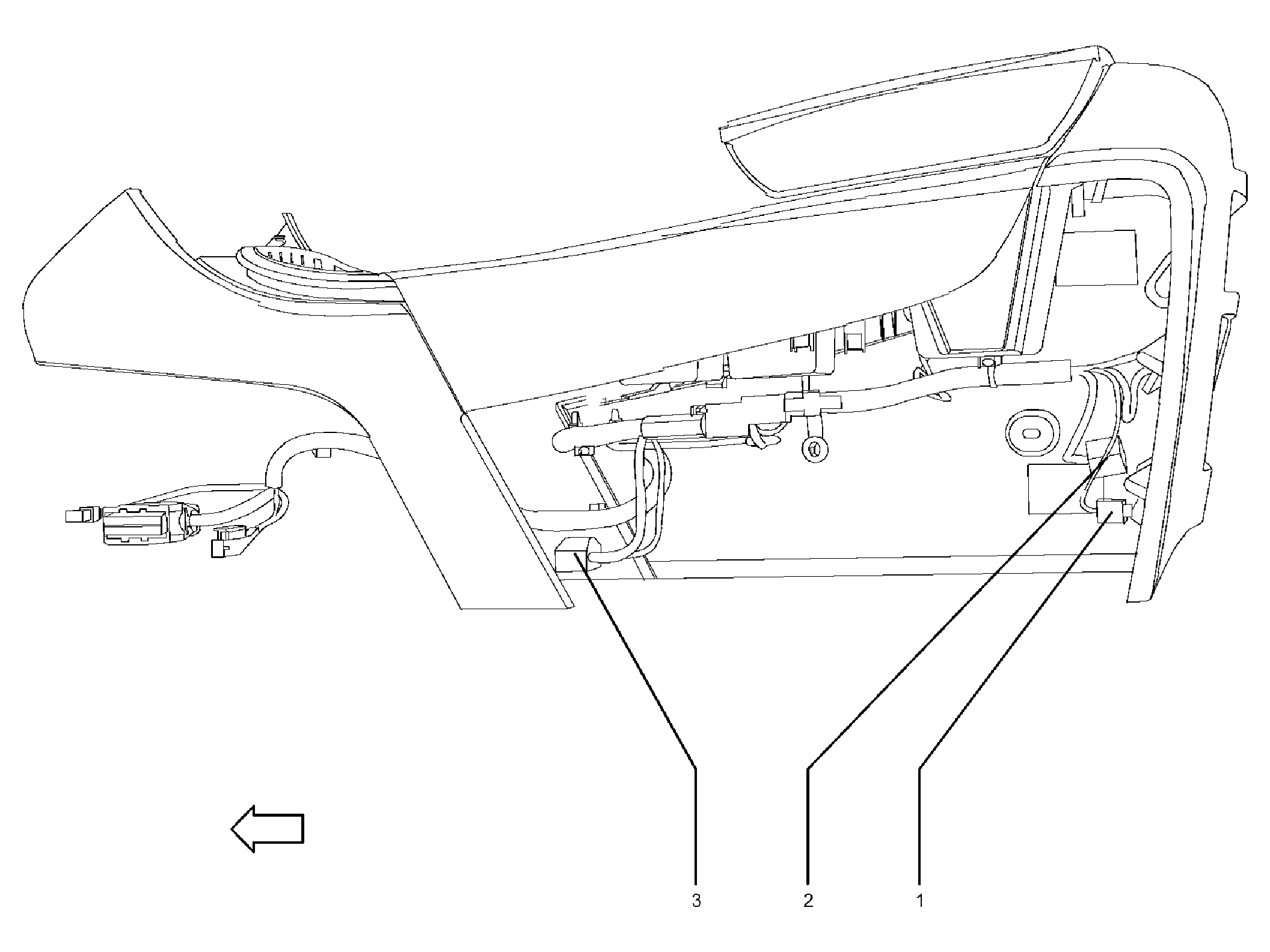

Fig 1: Center Console Component Locations
GM2182413Courtesy of GENERAL MOTORS CORP.
