Throttle Inlet Absolute Pressure Sensor Replacement

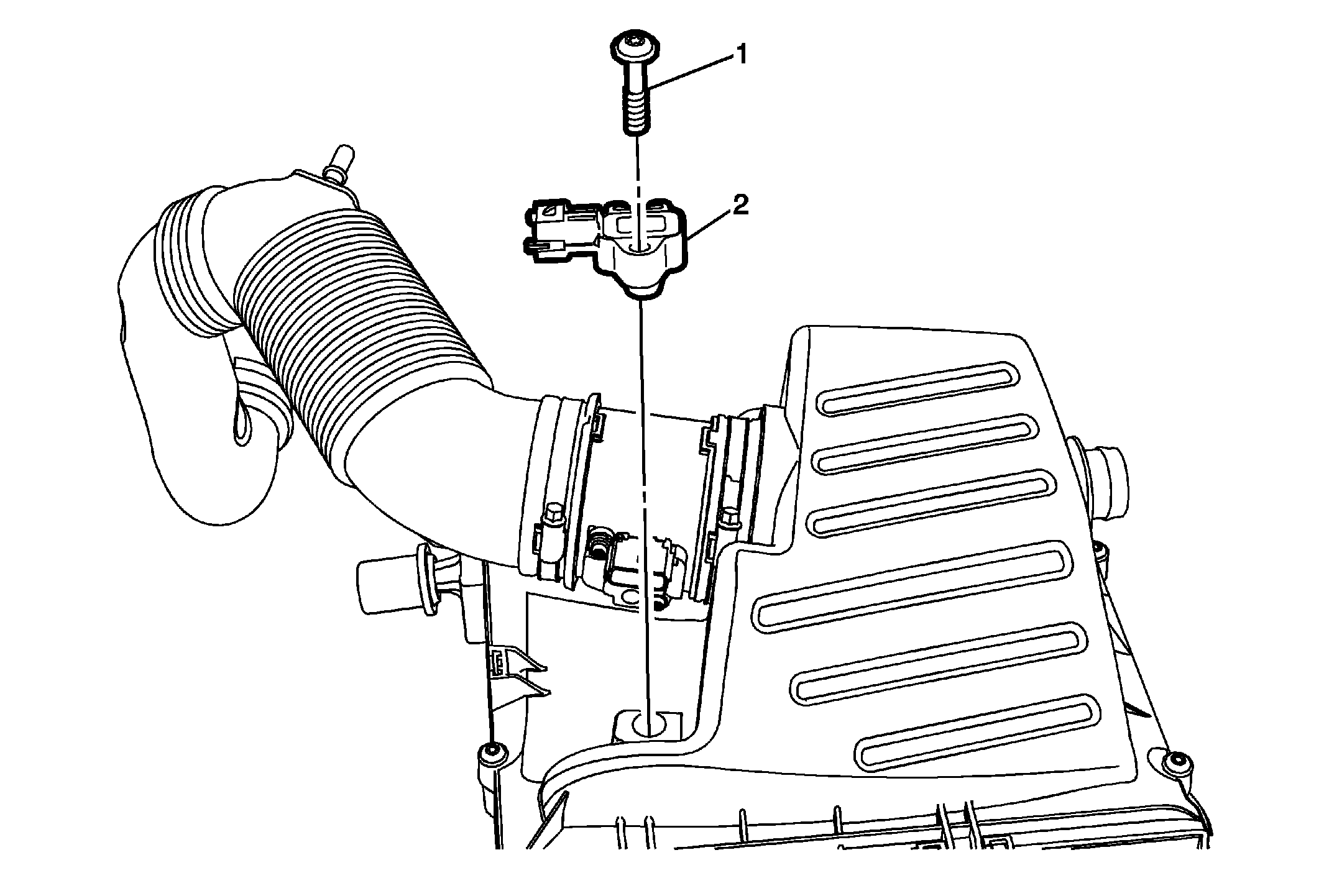

Fig 1: Throttle Inlet Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Inlet Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten:  4 N.m (35 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure:  Disconnect the electrical connector.
