Manifold Absolute Pressure Sensor Replacement

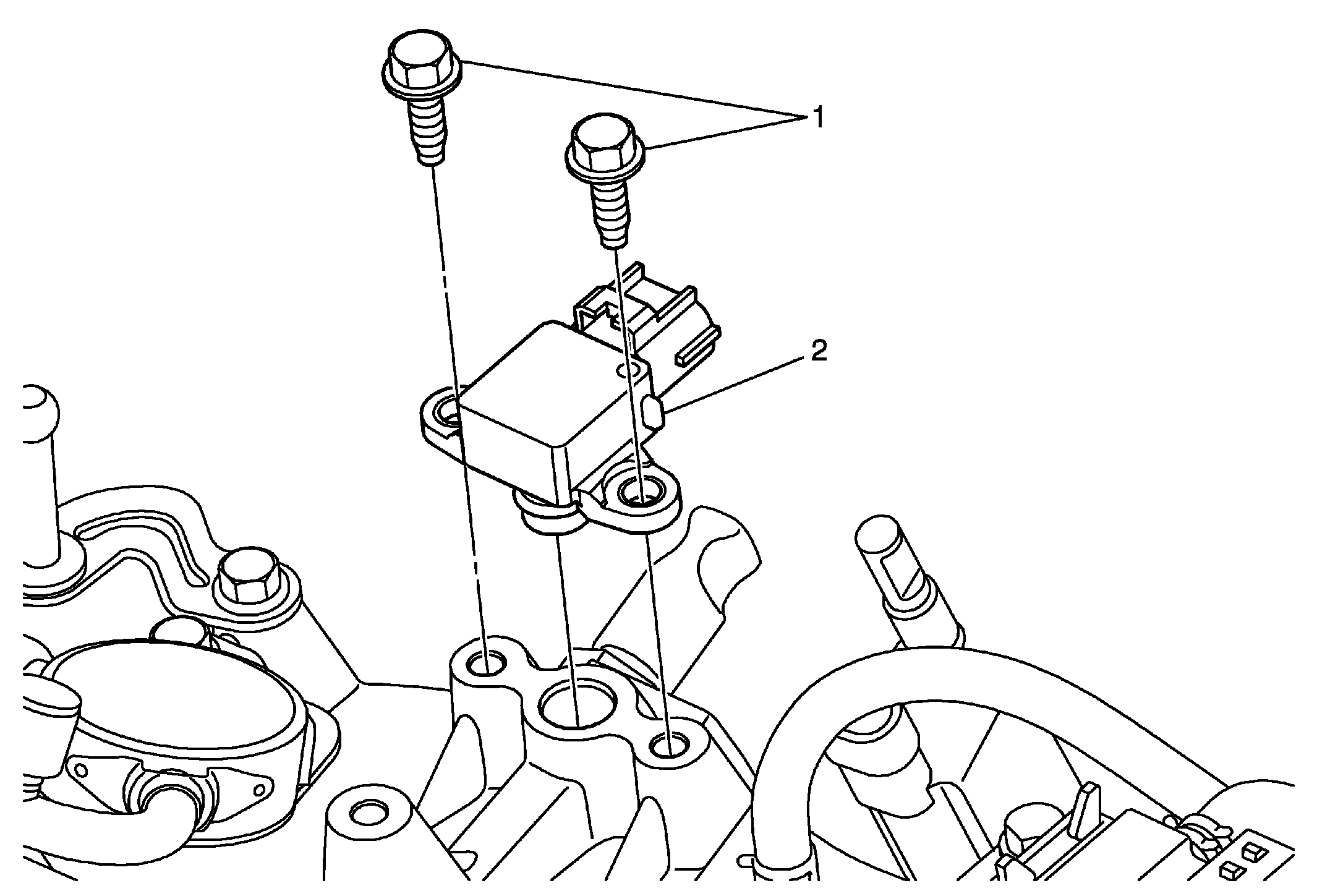

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Manifold Absolute Pressure Sensor Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Procedure: Disconnect the electrical connector. Tighten: 4 N.m (36 lb in) |
| 2 | Manifold Absolute Pressure Sensor |
