Ignition Coil Replacement

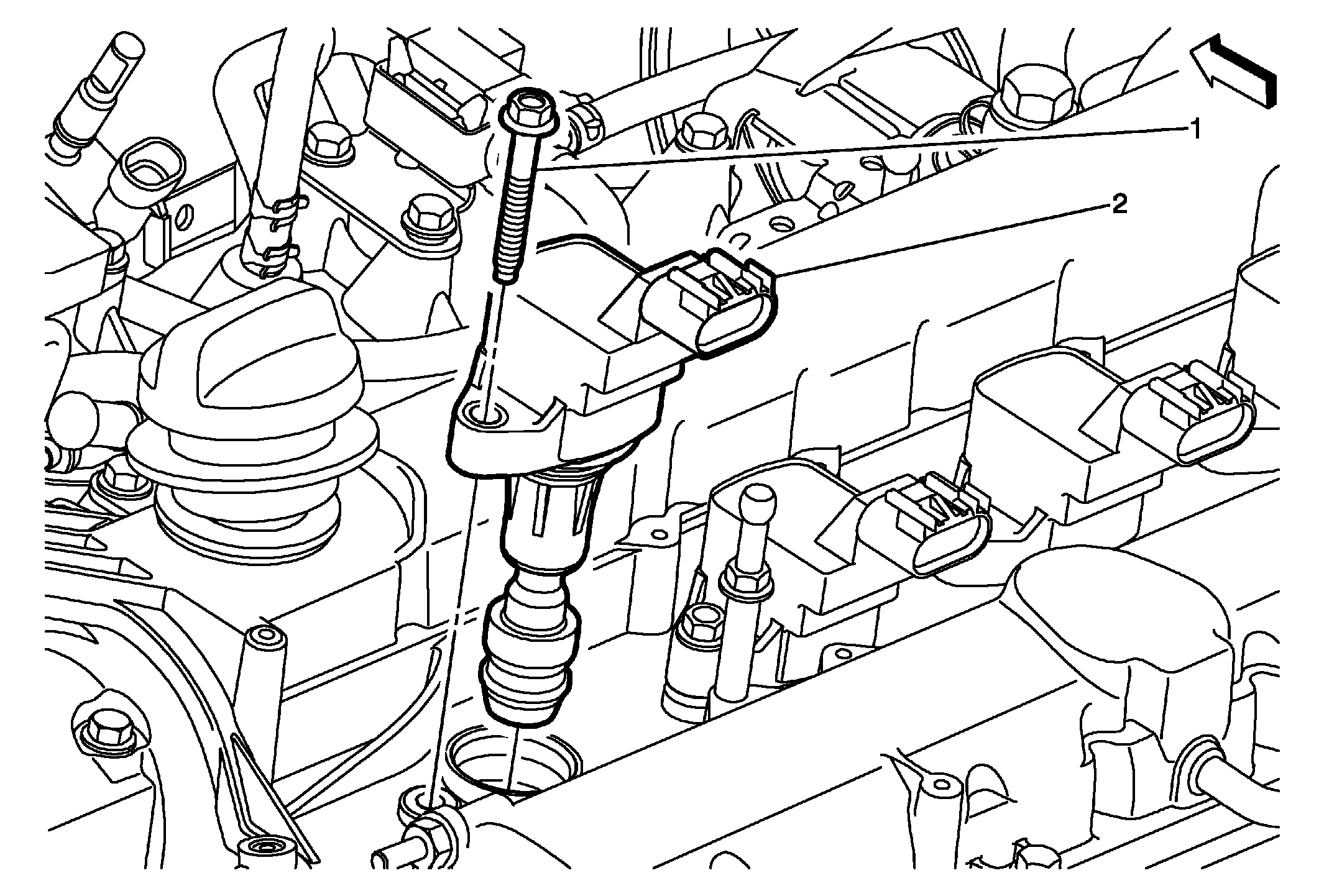

Fig 1: Ignition Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Ignition Coil Fastener CAUTION: Refer to Fastener Caution Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb in)
2	Ignition Coil
